Rent the Fluke Calibration 55XXA/COIL 10 1-, 2- and 10-turn Current Coil, 30A / Coil

Fluke Calibration 55XXA/COIL 10 for Rent, 1-, 2- and 10-turn Current Coil, 30A/Coil

Order # 55XXA/COIL 10-RENT2

Mfg # 55XXA/COIL 10

call-regular 800-828-1470
$0.00
  • Overview
  • Specifications

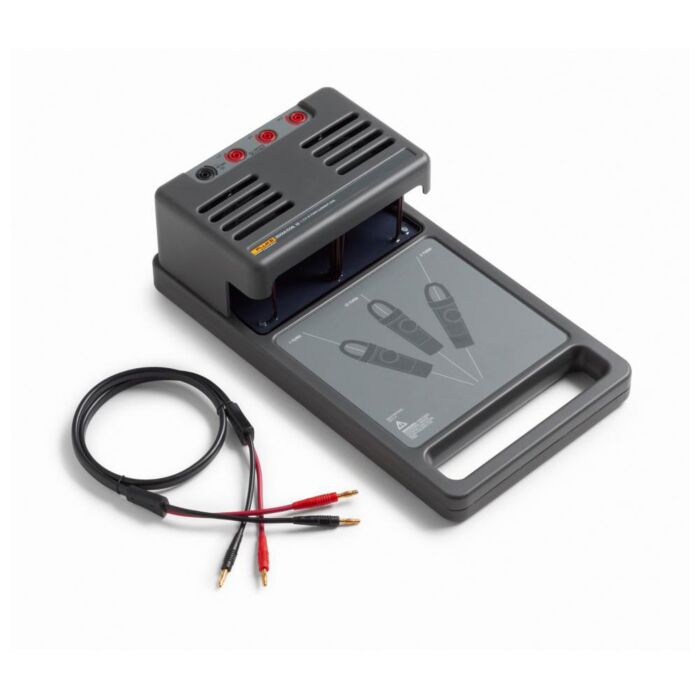

Fluke Calibration 55XXA/COIL 10 for Rent, 1-, 2- and 10-turn Current Coil, 30A/Coil

Order # 55XXA/COIL 10-RENT2 | Mfg # 55XXA/COIL 10

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Optional 1-, 2-, 10-turn current coil expands workload coverage for calibrating clamp meters and ammeters.

Includes an Accredited 17025 Calibration Certificate Traceable to International Standards with Data

Specifications

Specifications
Number of turns 1, 2, or 10
Maximum current 30.2 A rms, continuous
Maximum voltage, all inputs 30 V to Earth
Minimum inner diameter of clamp jaws 1-turn, 3 mm
2-turn, 6 mm
10-turn, 10 mm
Coil ratio +/- 0.65%, 3 Hz to 440 Hz. Usable but unspecified at DC and above 440 Hz
