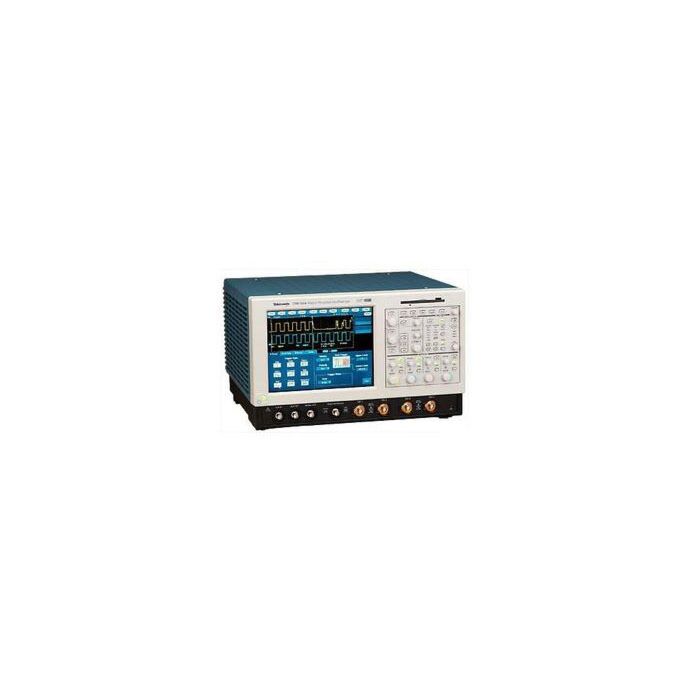

Tektronix TDS7154 Highlights
As part of the TDS7000 Series of oscilloscopes, the Tektronix TDS7154 1.5GHz 4CH Digital Phosphor Oscilloscope is a high performance solution for verification, debug and characterization of sophisticated electronic designs. The TDS7154 Oscilloscope features exceptional signal acquisition performance, operational simplicity and open connectivity to the design environment. Classic analog-style controls, a large touch-sensitive display and graphical menus provide intuitive control. Open access to the Microsoft Windows operating system enables unprecedented customization and extensibility.
- 1.5 GHz Bandwidth
- Up to 20 GS/s Real-time Sample Rate
- Up to 32 Megasamples Memory Depth
- Greater than 400,000 Wfms/second Maximum Waveform Capture Rate
- Optional Communications Mask Testing Up to 2.5 Gb/s Rates
- Optional Clock Recovery from Serial Data Streams
- Optional 32-bit Serial Trigger for Isolation of Patterndependent Effects
- 10 MHz Timebase Reference Input for Enhanced Accuracy and Repeatability
- Graphical User Interface
- Control via Classic Direct Controls, Touch-sensitive Color Display or Mouse Navigation
- Open Microsoft Windows Environment
- Built-in Networking
