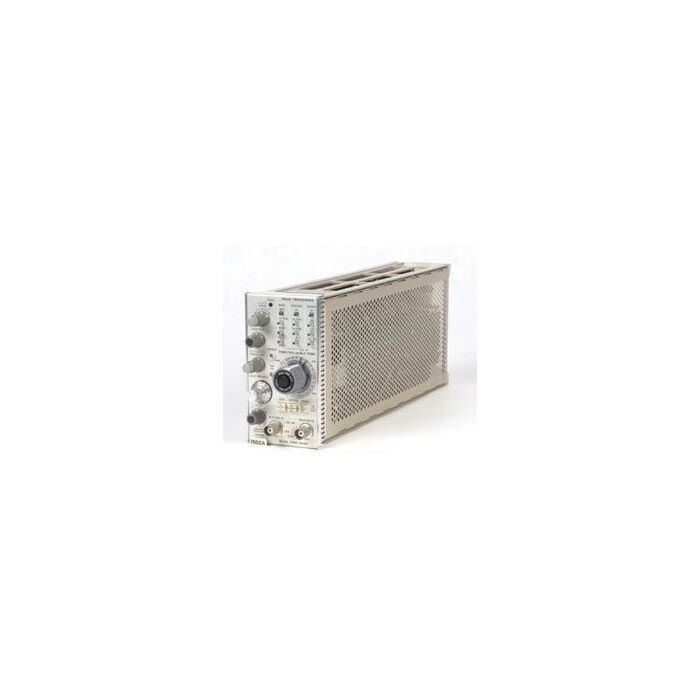

Tektronix 7B92A for Rent, Dual Time Base

Tektronix 7B92A Highlights

The 7B92A Dual Time Base Plug-Ins provide normal, delayed, intensified, and alternate sweep operation for Tektronix 7000-Series Oscilloscopes. The 7B92A is primarily designed for the high-frequency 7000-Series Oscilloscope systems; however, most 7B92A functions are compatible with all 7000-Series Oscilloscopes. They will function more slowly with the lower frequency units.

Additional features include lighted push button switches, compatibility with indicator oscilloscopes having an alphanumeric readout system, and 0 to 9.8 times continuous sweep delay. A variable control allows continuously variable sweep rates between calibrated steps. Also, when operating in the auto main triggering mode a bright base line is displayed in the absence of a trigger signal. This unit is in good used condition but may require calibration before use.

• 0.5ns/DIV to 0.2s/DIV Calibrated Time Base
• Triggering to 500 MHz
• Display Switching - Alternate Display of Intensified Delaying & Delayed Sweeps
