Tektronix 7B53A for Rent, Dual Time Base

Tektronix 7B53A Highlights

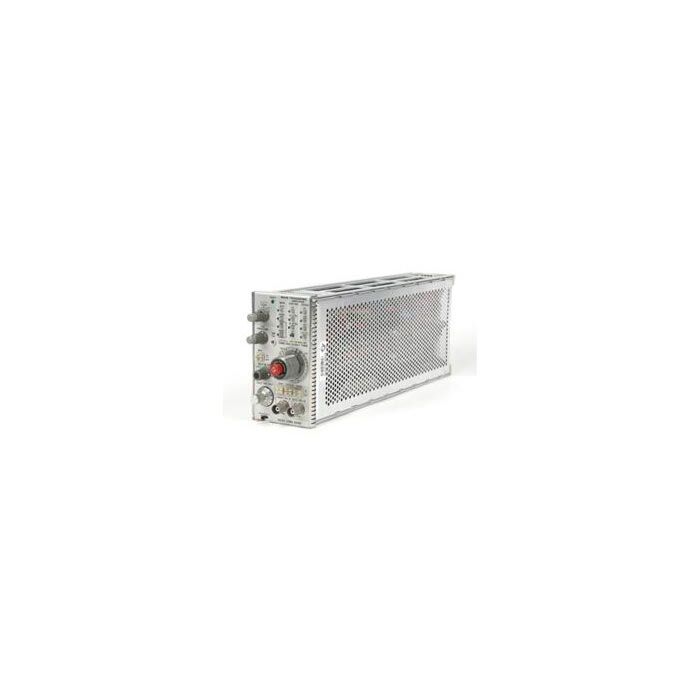

The Tektronix 7B53A is a 100 MHz dual time base plug-in for 7000-series scopes. It is similar to the 7B52 which is much more rarely found. While the 7B52 has a separate mode switch, this is integrated into the time/Div switch in the 7B53A.

• Sweep rates: 50 ns/Div to 5 s/Div in 1—2—5 sequence (5 ns with _10 magnification)
• Deflection: 10 mV/Div, 100 mV/Div or 1 V/Div, up to 2 MHz
• Sensitivity: 0.3 Div or 100 mV up to 10 MHz, 1.5 Div or 500 mV up to 100 MHz
• Coupling: DC, AC (> 30 Hz), AC LF REJ (> 30 kHz), AC HF REJ (30 Hz — 150 kHz)
• Input impedance: 1 MΩ // 20 pF
• Jitter: < 1 ns at 75 MHz
• Dual delayed timebase
• External trigger inputs for main and delayed
• Display modes: Main, Intensified, Delayed, Mixed
