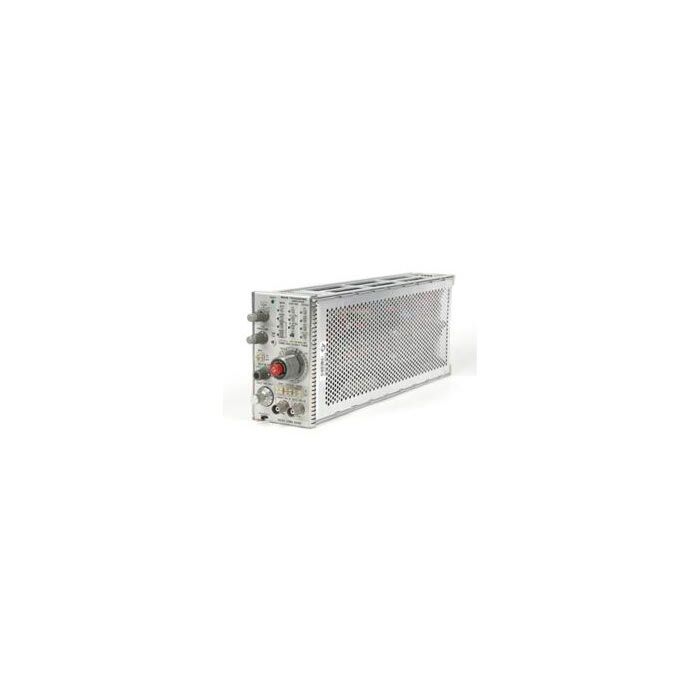

Tektronix 7B53A for Rent, Dual Time Base
Dual Time Base
Order #: 7B53A-RENT2
Mfg #: 7B53A
Call for price
Call for price
Tektronix 7B53A for Rent, Dual Time Base
Dual Time Base
Order #: 7B53A-RENT2
Mfg #: 7B53A
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
Tektronix 7B53A Highlights
The Tektronix 7B53A is a 100 MHz dual time base plug-in for 7000-series scopes. It is similar to the 7B52 which is much more rarely found. While the 7B52 has a separate mode switch, this is integrated into the time/Div switch in the 7B53A.
- Sweep rates: 50 ns/Div to 5 s/Div in 1—2—5 sequence (5 ns with _10 magnification)
- Deflection: 10 mV/Div, 100 mV/Div or 1 V/Div, up to 2 MHz
- Sensitivity: 0.3 Div or 100 mV up to 10 MHz, 1.5 Div or 500 mV up to 100 MHz
- Coupling: DC, AC (> 30 Hz), AC LF REJ (> 30 kHz), AC HF REJ (30 Hz — 150 kHz)
- Input impedance: 1 MΩ // 20 pF
- Jitter: < 1 ns at 75 MHz
- Dual delayed timebase
- External trigger inputs for main and delayed
- Display modes: Main, Intensified, Delayed, Mixed
