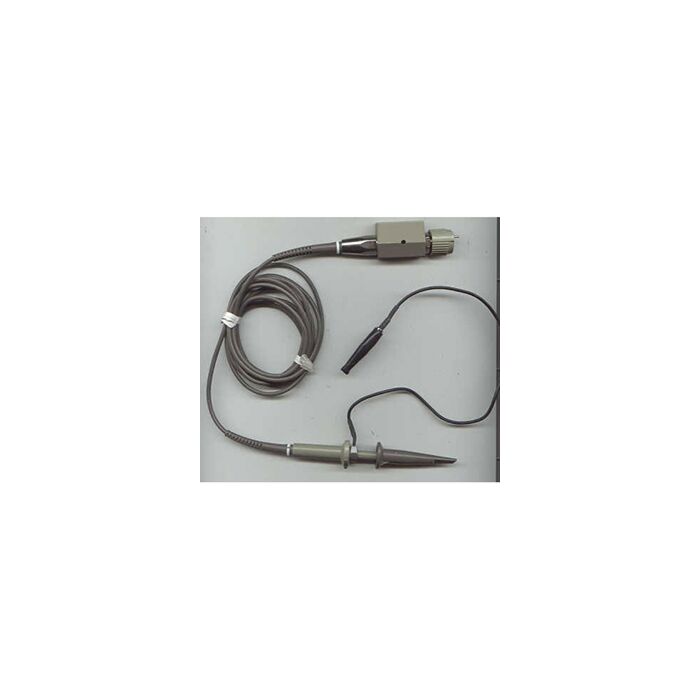

Tektronix P6105A for Rent, 100 MHz Passive Probe 10X Attenuation, 1Ohm Impedance

Tektronix P6105A Highlights

The P6105A is a miniature, 10X passive probe for use with dc to 100 MHz oscilloscopes with an input capacitance range of 15 to 35 pF and an input resistance of 1 MΩ.

• Bandwidth : DC to 100 MHz (1 or 2 meter cable)
• Bandwidth : DC to 90 MHz (3 meter cable)
• Attenuation : 10X ±3.0% at DC
• Input Resistance : 10 MΩ ±2%
• Input Capacitance : 8.7pF (1 meter)
• Input Capacitance : 11.2pF (2 meter)
• Input Capacitance : 13.2pF (3 meter)
• Scope Input Resis : 1 MΩ
• Compensation Range : 15pF to 35pF
• Compensation Range : 15pF to 30pF (3 meter cable)
• Readout Pin : YES
• Ground Ref : YES
• ID Button : NO
• Max Rated Voltage : 500 VRMS
• Cable Length : 1, 2 or 3 meters
• Net Weight : 3.7 - 5.4 oz (106 - 123 g)
• Scope Compatibility : Most General Purpose
