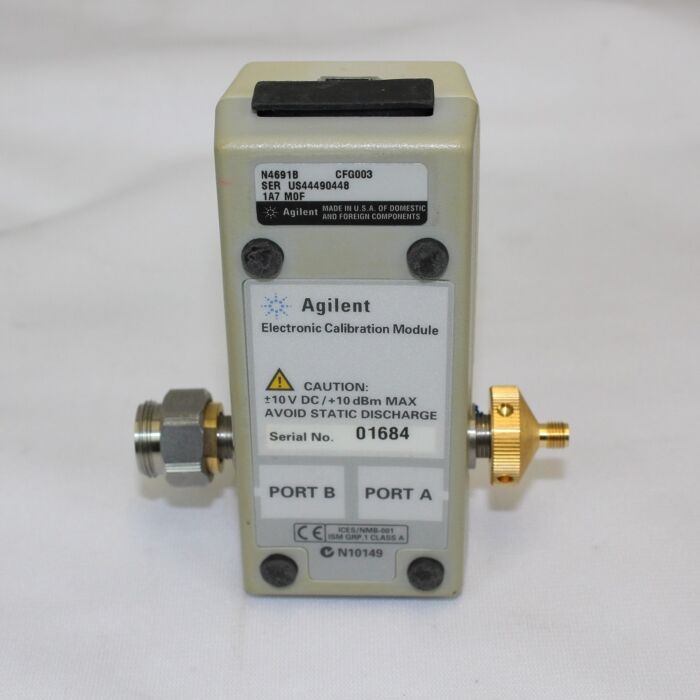

Keysight N4691B for Rent, Electronic Calibration Module (ECal), 300kHz to 26.5GHz
Order #N4691B/M0F-RENT2|Mfg #N4691B
For Rent
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Key Features & Specifications
300 kHz to 26.5 GHz frequency range
USB interface for direct control with PNA and ENA series of network analyzers
Fast calibration
Full two-port calibration with a single connection
Reduced connector wear
NIST traceable accurate calibrations
Reliable solid-state switching
Description
The Keysight N4691B MW electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy and accurate. The RF ECal system is now easily controlled by one of two methods depending on the network analyzer. The Keysight PNA and ENA series of network analyzers controls the module directly via the USB interface.
ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
