Product Highlights

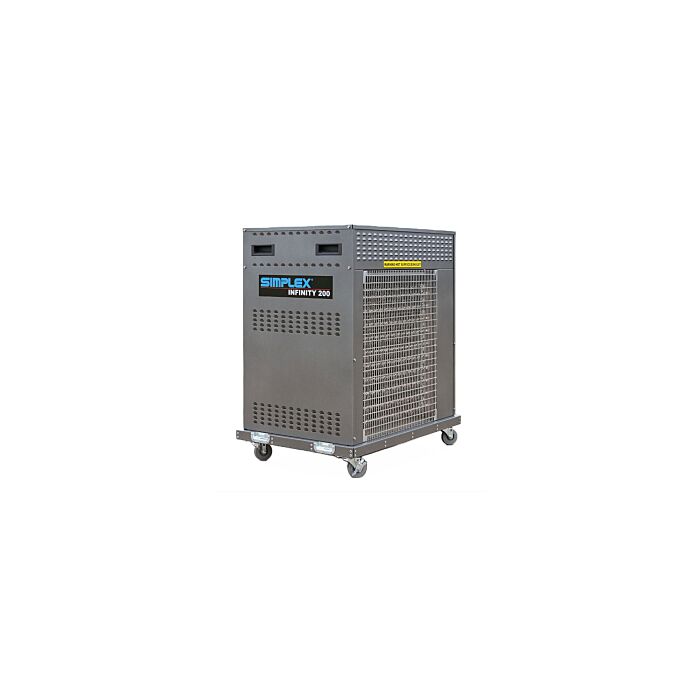

The Simplex Infinity 200 is simply the most advanced factory-standard load bank available anywhere. Digitally controlled infinite loads-simply enter any value from zero to max, and the load bank goes there. Single-point control of the chain of load banks. Single-point data acquisition of the chain. 200kw at 240 and 480v, 3-phase; 150kw at 208 and 416v, 3-phase, 133kw at 240v, singlephase, all in the smallest and lightest package available.
The Infinity-200 is a digitally controlled load bank with network capability. All control is via a hand-held touchscreen controller connected to the load bank via a supplied RS-232 network cable. The load bank includes a digital power transducer with meter displays on the touchscreen. The Load Bank includes casters, lifting and moving handles. Power connections are plug-in to Cam-Type connectors. Control and cooling fan power is obtained from a common 115v, 15A outlet via the included connection cord.
| Frequency |
50–60–400Hz |
| Power |
200kW |
| Voltage |
Dual Voltage, nominal 240/480V AC, 3-phase |
