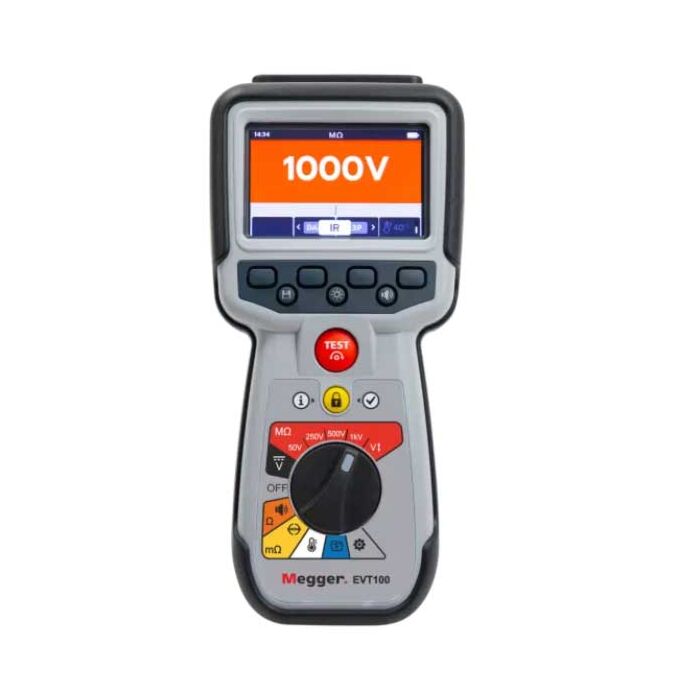

The EVT100 has been designed to meet the needs of those who manufacture or maintain electric vehicles (EVs) and to aid compliance with the UNECE R100 regulations. A single compact handheld unit provides all the tests that these users will routinely need, including insulation resistance testing up to 1 kV, low-resistance bond testing, continuity and diode testing, and DC voltage measurement with polarity check.
Despite its versatility, the EVT100 is easy and safe to use, even for those with limited experience in electrical testing. It has a straightforward user interface and incorporates safety features that inhibit testing if it is not connected correctly or if an attempt is made to use it outside its operational range. Users also have access to detailed application guides and Megger's renowned global support service.
To ensure reliable results, the EVT100 offers the option of two-, three- and four-wire low resistance testing, which can be used, for example, to verify the bonding of metal parts. The insulation resistance testing function offers automatic temperature compensation, and a guard terminal is provided to eliminate the effects of surface leakage, which could otherwise lead to inaccurate results.
To aid reporting, the EVT100 has internal storage for 256 test results. These can be easily downloaded via a standard USB memory stick and transferred to a computer for incorporation into reports and certificates. This not only saves time but also eliminates the risk of errors.
The EVT100 features rugged construction, ensuring a long, reliable operating life even in tough workshop conditions. It provides a comprehensive, reliable and easy-to-use solution for all EV and EV component testing requirements.
- Full colour graphic display
- DC voltage and polarity test
- Insulation resistance and surface leakage current detection
- 4 wire low resistance bonding test
- 2 wire continuity and diode test
- Data storage and management
- CAT III 600 V up to 3000 m
- Environmental protection to IP54
- Multipurpose industrial carrycase
- Rechargeable batteries and charger
