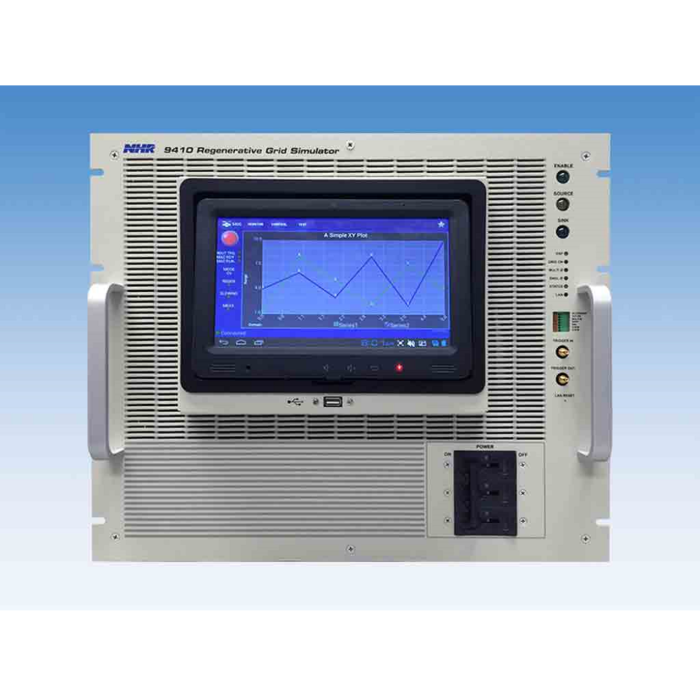

NH Research 9410-12 for Rent, Regenerative Grid Simmulator

The NH Research 9410-12 Regenerative Grid Simulator is the smallest and most versatile grid simulator available for IEEE 1547/UL 1741/LVRT and similar grid-connected device testing. The NHR 9410-12 grid simulator is a fully-programmable, full 4 quadrant AC source designed for testing inverters, UPS, and other AC devices. This 4 quadrant grid simulator also supports up to three (3) outputs allowing any combination of DC or 1Φ, 2Φ, & 3Φ AC test channels. Each channel is fully programmable allowing per-output control of the AC voltage amplitude, wave-shape, & phase relationship. In addition, each output channel within this grid simulator contains a built-in advanced measurement system including a 125k Sample/sec waveform digitizer in order to capture and analyze transients, harmonics, & other AC disturbances. These features makes this grid simulator ideal for development, laboratory, and production facility testing especially when a single channel test system is required.
