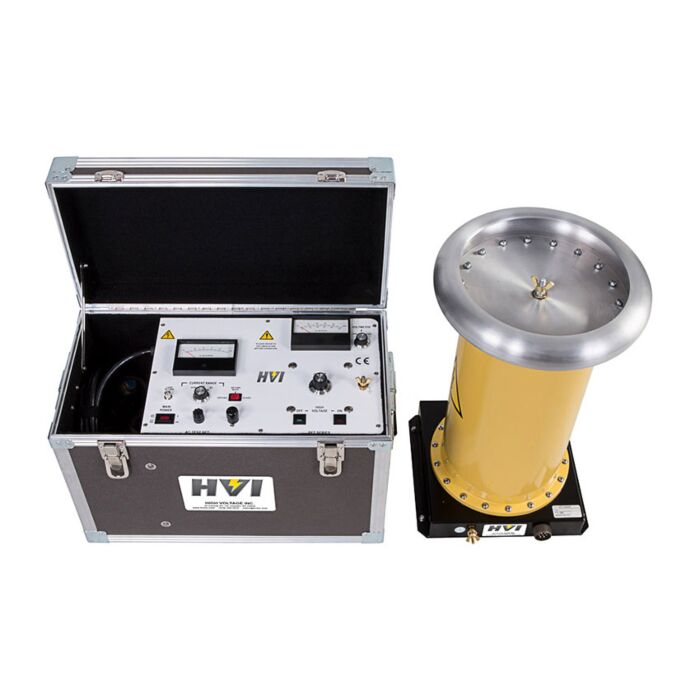

High Voltage Inc PFT-1003CM for Rent, 100kV AC Hipot
High Voltage Inc 100kV AC Hipot

Order #: PFT-1003CM-RENT1

Mfg #: PFT-1003CM-RENT1

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

High Voltage Inc PFT-1003CM for Rent, 100kV AC Hipot

High Voltage Inc 100kV AC Hipot

Order #: PFT-1003CM-RENT1

Mfg #: PFT-1003CM-RENT1

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability: Call for Availability

Product Highlights

The PfT-1003CM and PfT-1003CMf are from the popular PfT Series of field portable AC hipot test sets. These hipots provide continuously adjustable AC voltage used for a pass/fail, AC over-voltage withstand test on high voltage apparatus, like switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, bus duct, and any other apparatus needing an AC test voltage. The PfT Series offers the most field portable, affordable, and easiest to operate AC hipots at this voltage and power. A gapped core transformer for up to 3 kVA of output power with the draw of only 1.5 kVA so the hipot can be powered by a standard 120Vac or 230Vac input. Equipped with a two-range voltmeter, three-range current meter and guard circuit for precise leakage current measurements. f

  • Convenient two-piece field portable design
  • Secondary connected 2 Range Voltmeter: 0 - 50 / 100 kV AC
  • 3 Range Current Meter: 0 - 1 mA AC with x1, x10, and x100 multipliers
  • fixed overload set to 120% of variable transformer rated output current
  • Transit protected meters prevent meter damage between test sites
  • Guard/Ground circuit for accurate leakage current measurement
  • Gapped core transformer design for capacitive load compensation
  • Zero Start and External safety Interlock provisions
