Product Highlights

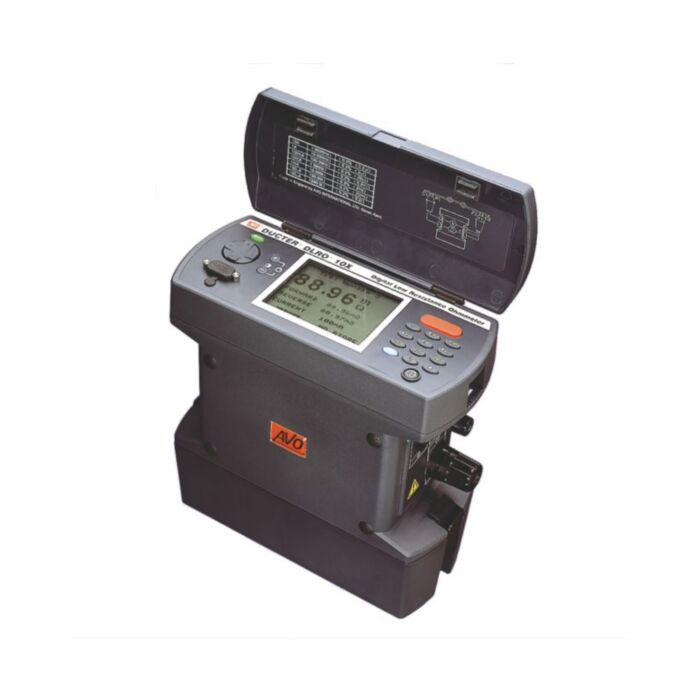

The MEGGER DUCTER DLRO10X brings new standards to low resistance measurement. A fully automatic instrument, it selects the most suitable test current, up to 10 A dc to measure resistance from 0.1 uOhm to 2000 Ohm on one of seven ranges. For users who desire more control over the measurement process, DLRO10X uses a menu system controlled by a two-axis paddle to allow the user to manually select the maximum test current. It also adds real time download of results and on board storage for later download to a PC.
Up to 700 sets of results may be stored within the Megger DLRO10X, complete with notes containing up to 200 characters which may be added using the on board keypad. Normally, measurements are made with forward and reverse currents to cancel the effects of any standing voltages across the test sample. The average value is then displayed within 3 seconds, to a basic accuracy of 0.2%. The Megger DLR010X displays both forward and reverse measurements as well as the average of the two. The DLRO10X is fitted with RS232 communications that will allow results to be downloaded in real time or stored for later retrieval.
Testing Performed by the Megger DLRO10X Low Resistance Ohmmeter Include:
- Switch and contact breaker resistance
- Busbar and cable joints
- Aircraft frame bonds and static control circuits
- Inter-cell connections on battery systems up to 600 V peak
- Transformer and motor winding resistance
- Wire and cable resistance
