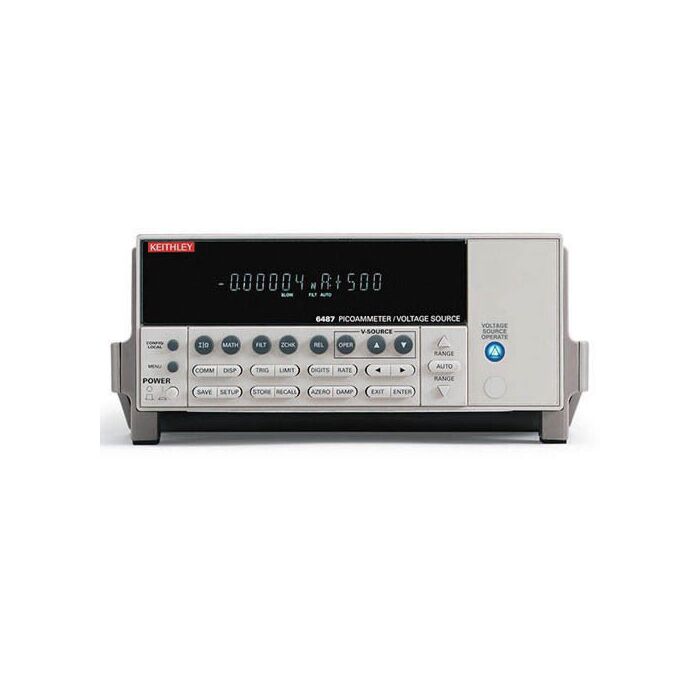

Keithley 6487 for Rent, Picoammeter/Voltage Source, 10fA resolution, 5-1/2 digit
Picoammeter / Voltage Source. 10fA resolution, 5-1/2 digit

Order #: 6487-RENT2

Mfg #: 6487

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Keithley 6487 for Rent, Picoammeter/Voltage Source, 10fA resolution, 5-1/2 digit

Picoammeter / Voltage Source. 10fA resolution, 5-1/2 digit

Order #: 6487-RENT2

Mfg #: 6487

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability: Call for Availability

Product Highlights

The 5½-digit Model 6487 Picoammeter/Voltage Source improves on the measurement capability of the award-winning Model 6485, and adds a high resolution 500V source. It provides higher accuracy and faster rise times than the 6485, as well as a damping function for use with capacitive devices. With eight current measurement ranges and high speed autoranging, this cost effective instrument can measure currents from 20fA to 20mA, take measurements at speeds up to 1000 readings per second, and source voltage from 200μV to 505V. The Model 6487’s 10fA resolution, superior sensitivity, voltage sweeping, and Alternating Voltage resistance measurements make it well suited for characterising low current devices. Using the latest current measurement technology, it is significantly less expensive than other instruments that perform similar functions, such as optical power meters, tera-ohmmeters, competitive picoammeters, or user-designed solutions.

  • 10fA resolution
  • 5-1/2 digit resolution
  • <200uV burden voltage
  • Up to 1000 readings/second
  • Built-in Model 486 and 487 emulation mode (Model 6487)
  • Alternating Voltage method ohms measurements (Model 6487)
  • Automated voltage sweeps for I-V characterisation (Model 6487)
  • Floating measurements up to 500V (Model 6487)
  • IEEE-488 and RS-232 interfaces
  • Digital I/O (Model 6487)
