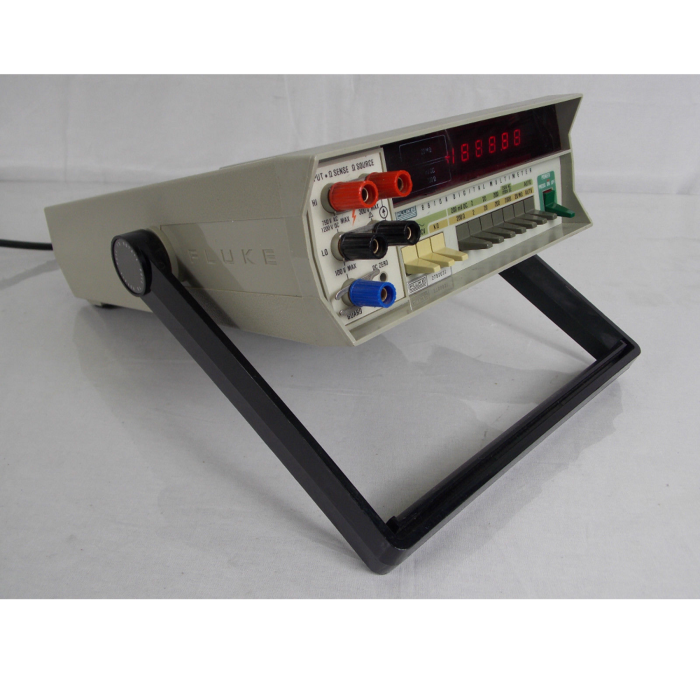

Fluke 8810A 5.5 Digit Digital Multimeter with Option 08: AC Converter
5-1/2 Digit Multimeter
Order #: 8810A-RENT2
Mfg #: 8810A-RENT2
Call for price
Call for price
Fluke 8810A 5.5 Digit Digital Multimeter with Option 08: AC Converter
5-1/2 Digit Multimeter
Order #: 8810A-RENT2
Mfg #: 8810A-RENT2
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
Fluke 8810A Highlights
The Fluke 8810A is a low cost, 5½-digit voltmeter/DMM. It is a high precision autoranging meter that offers a number of options. With the basic configuration, the 8810A is a voltmeter. Options add resistance, AC voltage, and TRMS measurement.
- Ranges: ±200 mV, ±2 V, ±20 V, ±200 V, ±1200 V
- DC input resistance: On 200 mV to 20 V range is ≥1000 MΩ, on 200 V to 1200 V range is 10 MΩ
- Normal Mode Noise Rejection: ≥60 dB
- Common Mode Noise Rejection: ≥120 dB
- Resolution: 1 µV on 200 mV range
- Overload protection on 200 mV to 20 V range: ±1000 Vdc, 1400 Vpeak ac
- Overload protection on 200 V, 1200 V range: ±1200 Vdc, 1700 Vpeak ac
- Offset current: <15 pA
- Full autoranging (rated at 600 ms maximum per range change) or manual ranging
- Automatic bipolar, + or - display
- Reading rate: 2.5 readings per second, within the same range
- MTBF: 10,000 hours calculated, minimum
- Maximum Common Mode Voltage: 1000 VDC or peak AC
- Maximum Lo to GUARD Voltage: 100 VDC or peak AC
- Data Output Unit (Option 002)
- Available data: Digits, Polarity, Range
- Data output form: Isolated BCD, with compatible TTL/DTL levels
- Data coding: 8-4-2-1 BCD positive-true parallel
- Drive capability: All outputs an drive a minimum of two TTL loads
- Flags: Busy, not Busy, Overload
- Controls: External trigger, external trigger enable, +5 V reference
- Ohms Converter (Option 007)
- Ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2000 kΩ, 20 MΩ
- Resolution: 1 mΩ on 200 Ω range
- Overvoltage protection: 300 Vrms or dc, applied continously to any range
- Maximum open circuit voltage: 3.3 V
- Response time: 1.0 s maximum to displayed input on 200 Ω to 200 kΩ range
- AC Converter (Option 008)
- Ranges: 2 V, 20 V, 200 V, 750 V
- Input impedance: 2 MΩ shunted by <100 pF
- Resolution: 10 µV on 2 V range
- Overload protection: 750 Vdc or rms sinewave, not to exceed 2 x 107 volts hertz product
- TRMS Converter (Option 009)
- Ranges: 2 V, 20 V, 200 V, and 750 V
- Resolution: 10 µV
- AC input impedance: 1 MΩ in parallel with 100 pF
- Crest factor: 3.0
- Response time: 1.5 s
- Overload protection: 500 Vdc or 750 Vrms or 1100 Vpea
