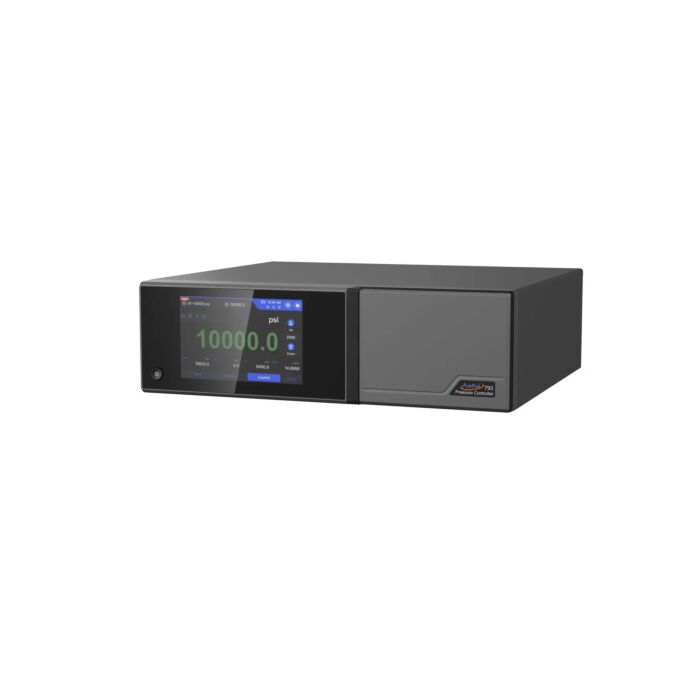

Additel ADT793 for Rent, Pressure controller, 0 to 15000 psi
Order #
ADT793-RENT1
|
Mfg #
ADT793-RENT1
Tariff fees or manufacture imposed surcharges may be applicable.
Additel ADT793 for Rent, Pressure controller, 0 to 15000 psi Accessories
Overview
Product Highlights
- Maximum pressure control range up to 15,000 psi (1,000 Bar)
- Interchangeable pressure module
- Available in oil and water versions
- Accuracy of 0.02%FS, 0.01%FS, or 0.01%RD
- Dual-range from -15~3,000 psi (-1~200 Bar) to 0~15,000 psi (0~1,000 Bar)
- Control stability of 0.005%FS
- Ultra-High speed pressure generation and control
- No external pressure source required
- Control using internal or external pressure modules
- Contamination Prevention System (CPS) (ADT793 optional)
- LAN, USB, RS232, and Ethernet communication
- External reservoir support
- Easy maintenance
- Emulation mode
- Pressure modules are not included
Specifications
| Specification |
ADT793 |
| Pressure Range |
0 to 15,000 psi (1,000 Bar) |
| Precision[1] |
0.008%RD or 0.007%FS or 0.01%FS |
| Accuracy[2] |
0.01%RD or 0.01%FS or 0.02%FS |
| Control Stability[3] |
< 0.005%FS, typically 0.003%FS |
| Control Response Time[4] |
< 30 Seconds |
| Pressure Type[5] |
Gauge, absolute |
| Internal Pressure Control Modules |
1 |
| External Pressure Control Modules |
1 |
| Max Pressure Range of Internal Module |
0~15,000 psi (0~1,000 Bar) |
| Min Pressure Range of Internal Module |
-15~3,000 psi (-1~200 Bar) |
| Min Range of External Module |
-15~1,000 psi (-1~70 Bar) |
| Range Switching Mode[6] |
Fixed, auto |
| Pump Source Type[7] |
Built-in hydraulic pump, no external pressure source required. |
| Control Mode |
Fast, standard, custom |
| Maximum Overshoot |
< 1%FS |
| Maximum Load Volume |
< 10,000 psi: Max: 80 ml, 50 mL recommend
10,000~15,000 psi: Max: 60 ml, 35 mL recommend |
| Contamination Prevention System (CPS) |
Optional |
| Pressure Port |
1/4 BSP M |
| Built-in Reservoir Volume |
800 mL |
| External Reservoir Extension |
Optional |
| Port Filter[8] |
Support |
| Media |
Diethylhexyl Sebacate or deionized water |
