Overview
Bruel & Kjaer 2231 Highlights

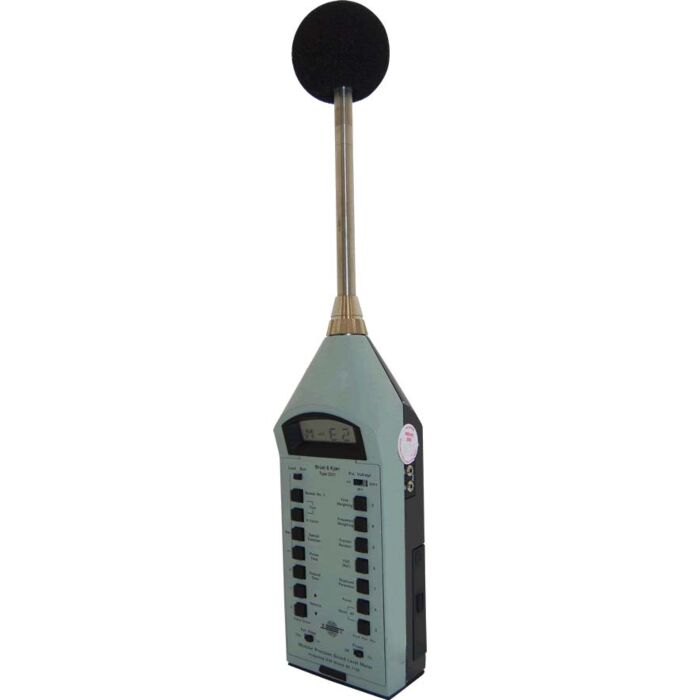

The Bruel & Kjaer 2231 Modular Precision Sound Level Meter 2 Hz - 70 kHz is a type 1 precision instrument. It is ideal for measurements according to the most stringent standards because of the comprehensive construction and extreme accuracy of the instrument. A system of interchangable modules to make different measurements is possible by using the 2231 sound meter. The instrument is compatible with almost any Bruel & Kjaer microphone and extends the measurement capabilities. The 2231 Modular Precision Sound Level Meter derives its many measurement capabilities from a series of interchangeable application modules. Each inserted module loads software that defines the functions of the buttons of the sound level meter. The software loaded still remains in tact when the sound meter is turned off.
Interchangeable application modules for a variety of measurements
Selectable polarization voltage grants the capability of using other microphones in the Bruel & Kjaer family
Peak and RMS parallel detection
Meets the IEC 804 Type 1 requirements as well as sections from IEC 651 Type 1 and ANSI S1, 4 Type 1
24 dB to 130 dB standard measuring range in 7 over-lapping sub-ranges. (Can be increased to 30 dB to 150 dB with attenuator)
Infrarand ultrasound measurments capable by the extra wide all pass frequency
Compatible with Bruel & Kjaer Serial Interface MOdule ZI 9101 for external control and communication
