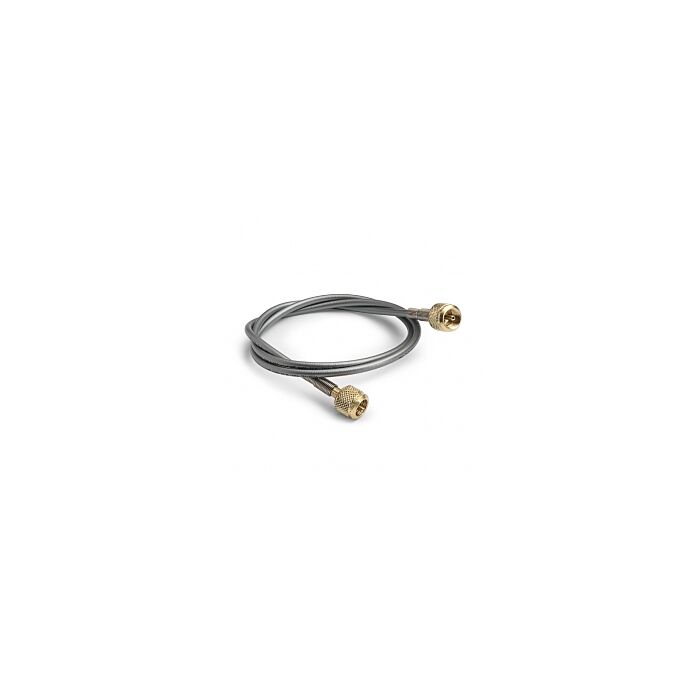

Ralston Instruments QTQT
QT Hose,Brass Hose Ends,25'
Order #: QTQT-HOS-25'
Mfg #: QTQT-HOS-25FT
$278.74
Product Highlights
- Low volume reduces the pumping effort or compressed gas usage in pressure calibration
- No thread sealant required – connect adapters to without wrenches, thread sealant or thread tape
- Bubble tight connections to 6900 psi (brass) or 11,040 psi (stainless steel) with no moving parts
- No moving parts reduces maintenance to almost zero
- Hose is hard to break and very flexible
- Adapt from hose to virtually any device under test with only one connection
- Silver color dramatically reduces the effect that changing temperature has on pressure stability
- A strain-relief on each hose end reduces wear and dramatically increases hose life
- Made in U.S.A.
- Length 25 ft
- Pressure Range 0 to 6900 psi (0 to 475 bar)
- Burst Pressure 27000 psi (1,860 bar)
- End 1 Female Quick-test, brass
- End 2 Female Quick-test, brass
- Temperature range -40 to 140 °F (-40 to 60 °C)
- Outer Diameter 0.2 in (5.1 mm)
- Inner Diameter 0.08 in (2.0 mm)
- Minimum Bend Radius 1 in (25.4 mm)
- Color Silver
- Construction Polyamide core tube, High tensile synthetic fiber and polyamide outer cover
- End materials Brass
- Fluid Media Water, Petroleum Based Oil, Air, Inert Gas
