Panametrics PT900-1C USED FOR SALE
Portable Liquid Ultrasonic Flow meter,1-Channel

Order #: PT900-1C-USED

Mfg #: PT900-1C-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$7,978.67

Panametrics PT900-1C USED FOR SALE

Portable Liquid Ultrasonic Flow meter,1-Channel

Order #: PT900-1C-USED

Mfg #: PT900-1C-USED

$7,978.67

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Used instruments from TranscatTranscat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability:
In stock
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

What's New About the TransPort PT900?

The PT900 maintains the same high performance as the PT878, but features a total redesign of the fl ow transmitter, clamping fixture and user interface. Key improvements include a redesigned fixture and a streamlined user interface on an Android tablet.

TransPort PT900 Makes Your Job So Much Easier

The PT900 has undergone the most involved voice of the user effort to date for GE's flow products. Several years of learning about how people use portable flow meters and what they want and need while making flow rate measurements have influenced the PT900's design. GE validated this learning and modified the design approach by sharing initial concepts and early prototypes with users. The result? The best portable flow meter needs to be versatile, easy to install, intuitive to use and capable of making reliable measurements even in the most difficult applications.

GE's Panametrics PT900 Flow Meter from Transcat

Operation and Performance

Fluid Types

Liquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles

Flow Measurement

Patented Correlation Transit-TimeTM mode

Pipe Sizes

Standard: 0.5 to 24 in. (15 to 600 mm)

Optional: up to 300 in. (7500 mm) available upon request

Pipe Wall Thickness

Up to 3 in. (76.2 mm)

Pipe Material

All metals and most plastics

Accuracy

  • ±1% of reading (2in/50mm or greater pipe sizes)
  • ±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)

Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors.

Repeatability

±0.2% of reading

Range (Bidirectional)

0.1 to 40 ft/s (0.03 to 12.19 m/s)

Response Time

Up to 2 Hz

Measurement Parameters

Velocity, Volume, Mass, Energy, Total Flow

Channels

1 channels

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.

Accuracy±1% of reading (2in/50mm or greater pipe sizes)
±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)
Installation assumes a fully developed, symmetrical flow profi le (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fl uid, temperature range, pipe centricity among other factors.

TransPort PT900 Specifications
Operation and Performance
Fluid Types Liquids: acoustically conductive fl uids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles
Flow Measurement Patented Correlation Transit-Time™ mode
Pipe Sizes Standard: 0.5 to 24 in. (15 to 600 mm)
Optional: up to 300 in. (7500 mm) available upon request
Pipe Wall Thickness Up to 3 in. (76.2 mm)
Pipe Material All metals and most plastics
Repeatability ±0.2% of reading
Range (Bidirectional) 0.1 to 40 ft/s (0.03 to 12.19 m/s)
Response Time Up to 2 Hz
Measurement Parameters Velocity, Volume, Mass, Energy, Total Flow
Channels 1 or 2 channels

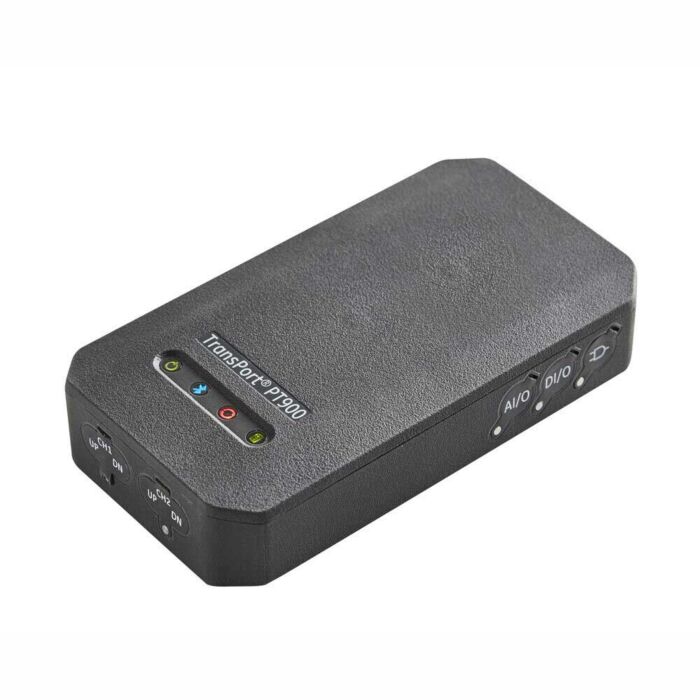

Flow Transmitter
Enclosure IP65 rating
Specifications
  • Weight: 3 lb (1.4 kg)
  • Size (h x w x md): 7.9 x 4.3 x 1.5 in. (200 x 109 x 38 mm)
  • Mounting: Soft strap around pipe or magnetic clamp±0.45°C /±0.81°F
Analog Inputs 4-20 mA (qty 2)
Analog Output 4-20 mA (qty 1)
Digital Output Pulse (Totalizer), Frequency, Alarm (qty 1)
Digital Communication
  • Modbus via RS485 Port
  • Bluetooth® Wireless
  • Micro-USB Port
Battery Type: Lithium Ion (high-energy, rechargeable)
Life (continuous operation): 18-20 hours
Life (power saver mode): >4 days
Charger: 100 to 240 VAC (50/60/Hz)
Charging Time: Up to 3 hours (from 0% to 100%)
Operating Temperature -20 to 55°C (-4 to 131°F)
Electronics Classifi cations
  • CE (EMC Directive) IEC 61326-1:2013,
    IEC 61326-2-3:2013, LVD 2006/95/EC,
    EN 61010-1 2010
  • ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2
    NO. 61010-1
  • WEEE Compliant (Directive 2012/19/EU)
  • RoHS Compliant (Directive 2002/95/EC)
User Interface
Display Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution
Dimensions
  • 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical
  • 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical
Battery Life >12 hours of continuous use
Battery Charger 100 to 250 VAC (50/60 Hz)
Operating Temperature 0 to 50°C (32 to 122°F)
Communication with Flow Transmitter Bluetooth®
Software Application (PT900 APP)
Intuitive, Swipe Screen Interface
  • Colorful, icon-driven design
  • Tutorial-style programming
  • Site parameter presets
  • Multiple display options
  • Extensive online help
Installing the PT900 APP Obtain the PT900 APP from:
  • File provided on SD card
  • Free download from Google Play
  • Free download from GE website
Languages English, Arabic, Chinese (Simplifi ed), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish
Clamp-On Transducers
Temperature Range*
  • Standard: -40 to 302°F (-40 to 150°C)
  • Optional: -328 to 752°F (-200 to 400°C)
*See individual transducer model specifi cations for exact temperature range
Mounting
  • New PT clamping fi xture for pipes ≥2 in. (50 mm)
  • CF-LP clamping fi xture for 1/2 in. (15 mm) to 2 in. (50 mm) pipes
PT9 Transducer Cables
  • Standard Length: 25 ft (8 m) of RG316 coaxial cable
  • Maximum Length: 100 ft (30 m) of RG316 coaxial cable
  • Temperature Range: -40° to 302°F (-40° to 150&#1`76;C)
  •
