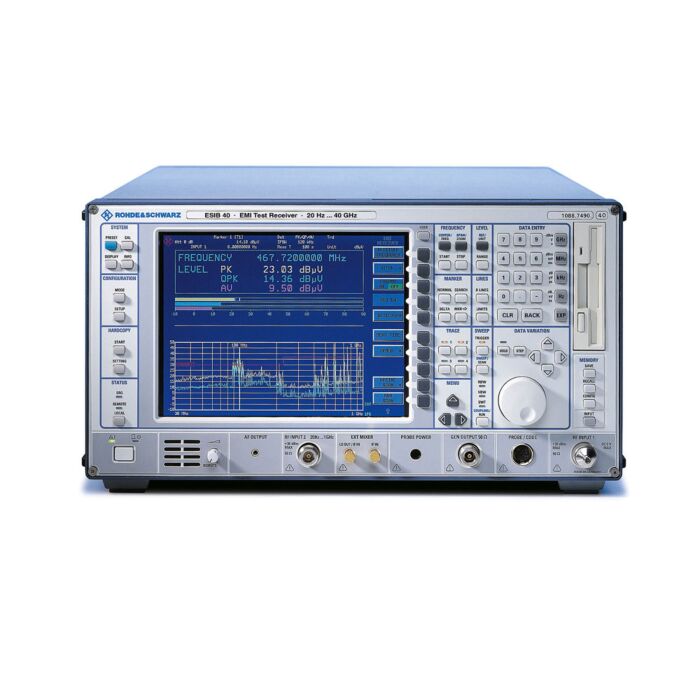

Rohde & Schwarz ESIB40 USED FOR SALE
Order #: ESIB40-USED
Mfg #: ESIB40-USED
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights
Each R&S®ESIB combines the high sensitivity, large dynamic range and selectivity of a high-end EMI test receiver with the flexibility and speed of a top-class spectrum analyzer.
The R&S®ESIB EMI test receivers fully comply with the basic standard CISPR 16-1-1 and carry out measurements in conformance with all civil and military EMI standards such as CISPR, EN, VDE, ANSI, FCC, BS, ETS, VCCI, MIL-STD, VG, DEF-STAN, etc.
Outstanding performance
- Frequency range 20 Hz to 7 GHz, 26.5 GHz or 40 GHz, depending on model
- Very high sensitivity (NF typ. 10 dB)
- Excellent large-signal immunity (1 dB comp.: +10 dBm)
- Low measurement uncertainty (< 1 dB up to 1 GHz)
- High measurement speed and result processing (min. meas. time 100 µs)
- Low inherent noise (<-3 dBµV)
The upper frequency limit of the R&S®ESIB26 and R&S®ESIB40 can be extended up to 110 GHz by means of external mixers (options R&S®FSE-B21 and mixers R&S®FS-Zxx required).
Scope of applicationEach R&S®ESIB offers features and test routines for the various stages of product development as well as for the final EMC certification tests.
The main users of the R&S®ESIB are
- EMC test houses and service providers
- Governmental organizations
- Safety standard authorities
- Military
- Large industrial development and EMC labs (e.g. automotive)
| Frequency range | ||
|---|---|---|
| Input 1 | 20 Hz to 7 GHz / 26.5 GHz / 40 GHz depending on model | |
| Input 2 | 20 Hz to 1 GHz | |
| Preselection | 9 or 10 preselection filters depending on model can be switched off in analyzer mode |
|
| Resolution bandwidths (receiver and analyzer mode) | ||
| 6 dB bandwidths EMI bandwidths |
10 Hz to 10 MHz, in decimal steps 200 Hz, 9 kHz, 120 kHz, 1 MHz acc. to CISPR 16 tolerance |
|
| Resolution bandwidths (analyzer mode) | ||
| 3 dB bandwidths | 1 Hz to 10 MHz, in steps 1/2/3/5 | |
| Displayed average noise level | ||
| Receiver mode; 0 dB RF attn.; preamp. 20 dB |
R&S ESIB7 | R&S ESIB26 / 40 |
| 9 kHz to 150 kHz (RBW 200 Hz) | –10 to –24 dBµV | –10 to –24 dBµV |
| 0.15 MHz to 30 MHz (RBW 9 kHz) | –7 to –17 dBµV | –7 to –17 dBµV |
| 30 MHz to 1000 MHz (RBW 120 kHz) | <–6 dBµV | <–3 dBµV |
| 1 GHz to 7 GHz (RBW 1 MHz) | <6 to 9 dBµV | <9 to 12 dBµV |
| 7 GHz to 26.5 GHz (RBW 1 MHz) | – | <4 to 6 dBµV/6 to 9 dBµV |
| 26.5 GHz to 40 GHz (RBW 1 MHz) | – | – /20 to 26 dBµV |
| Max. dynamic range (BW 1 Hz) | ||
| 1 dB compr. point/displayed noise floor | 162 dB | 160 dB |
| Total level uncertainty (preamp. off) | ||
| Analyzer mode | ≤ 1 GHz 1 GHz to 7 GHz |
≤ 0.5 dB ≤ 1.0 dB |
| Receiver mode | 150 kHz to 1 GHz 1 GHz to 4.5 GHz 4.5 GHz to 7 GHz |
≤ 1.0 dB ≤ 2.0 dB ≤ 2.5 dB |
| Measurement speed | ||
| Sweep (analyzer mode) | 1 µs to 2.500 s (zero span) 5 ms to 1.000 s (span ≥ 10 Hz) |
|
| Scan (receiver mode) | 100 µs to 1.000 s | |
| Max. input level | ||
| RF attn. ≥ 10 dB; sinewave AC voltage | 137 dBµV (= 1 W) | |
| Max. input pulse voltage (10 µs) | ||
| Input 2 (≤1 GHz); RF attn. ≥ 10 dB | 1.500 V for the R&S ESIB7 250 V for the R&S ESIB26/40 |
|
-
-
-
-
