Stanford Research Systems SR560 Used for Sale

Low-noise Voltage Preamplifier DC-1MHz

Order #: SR560-USED

Mfg #: SR560

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,451.35

Availability: Call for Availability

This item is available as RENTAL at

Call for price

Shop now

Product Overview

Product Highlights

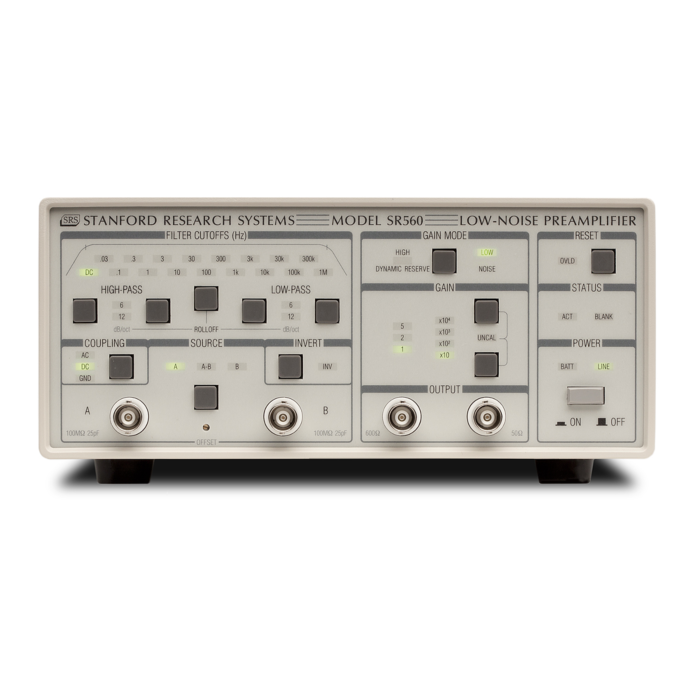

The SR560 is a high-performance, low-noise preamplifier that is ideal for a wide range of applications including low temperature measurements, optical detection, and audio engineering.

The SR560 has a differential front-end with 4 nV/√Hz input noise and an input impedance of 100 MΩ. Complete noise figure contours are shown in the SR560 Tech Note at the end of this section. The SR560's inputs are fully floating (BNC shields are not connected to chassis ground). Both the amplifier ground and the chassis ground are available on the rear panel for flexibility in grounding the instrument. Input offset nulling is accomplished by a front-panel potentiometer, accessible with a small screwdriver.
