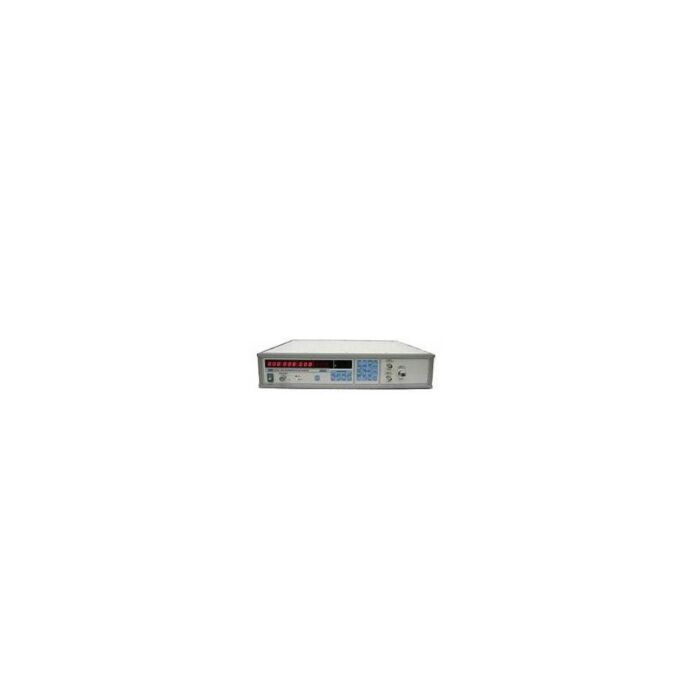

Used EIP Microwave 585C Frequency Counter

The EIP 585C is a high-performance microwave pulse and continuous wave (CW) frequency counter used for precise measurement of radio frequency (RF) signals. It is primarily utilized in telecommunications, radar system analysis, and research laboratories to characterize complex signals.

• Covers 950 MHz to 20 GHz, with input sensitivity as high as -20 dBm
• Measures CW, pulsed, and frequency-agile signals, including pulse width and pulse repetition interval
• Uses a YIG-preselected heterodyne technique for superior selectivity, minimizing interference from adjacent signals
• Features automatic signal acquisition and profiling, with an optional internal delaying pulse generator for detailed modulation analysis
• A 9-digit sectionalized LED display is provided for clear, high-resolution readout

Applications

• Radar System Testing
• Telecommunications and Wireless
• Microwave Measurements
• Automated Test Equipment
• Calibration Labs

Each Unit Includes

• Frequency Counter (585C)
