Rohde ESIB40 USED FOR SALE EMI Test Receiver,20Hz-40GHz

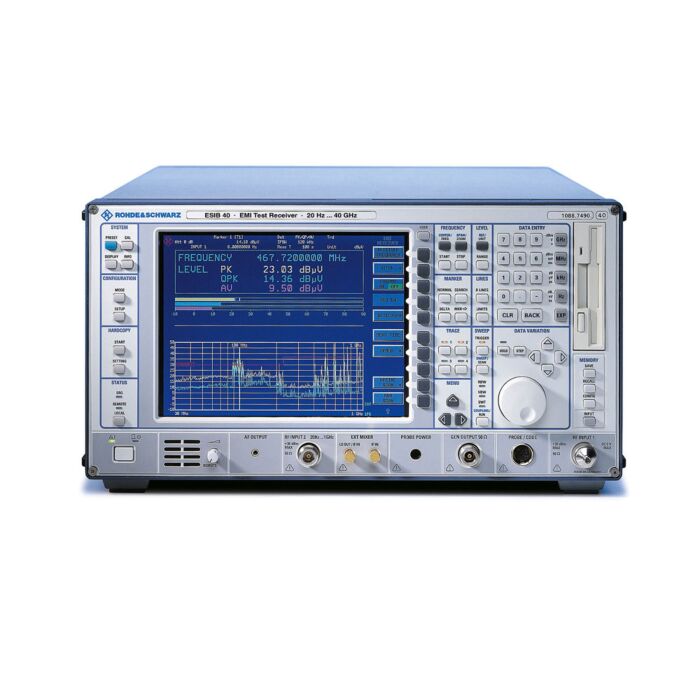

Used Rohde & Schwarz ESIB40 EMI Test Receiver, 20Hz to 40GHz

Order # ESIB40-USED

Mfg # ESIB40-USED

call-regular 800-828-1470
$71,498.57
Loading...
Loading...
  • Overview
  • Specifications

Used Rohde & Schwarz ESIB40 EMI Test Receiver, 20Hz to 40GHz

Order # ESIB40-USED | Mfg # ESIB40-USED
$71,498.57

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Each R&S®ESIB combines the high sensitivity, large dynamic range and selectivity of a high-end EMI test receiver with the flexibility and speed of a top-class spectrum analyzer.

The R&S®ESIB EMI test receivers fully comply with the basic standard CISPR 16-1-1 and carry out measurements in conformance with all civil and military EMI standards such as CISPR, EN, VDE, ANSI, FCC, BS, ETS, VCCI, MIL-STD, VG, DEF-STAN, etc.

Outstanding performance

  • Frequency range 20 Hz to 7 GHz, 26.5 GHz or 40 GHz, depending on model
  • Very high sensitivity (NF typ. 10 dB)
  • Excellent large-signal immunity (1 dB comp.: +10 dBm)
  • Low measurement uncertainty (< 1 dB up to 1 GHz)
  • High measurement speed and result processing (min. meas. time 100 µs)
  • Low inherent noise (<-3 dBµV)

The upper frequency limit of the R&S®ESIB26 and R&S®ESIB40 can be extended up to 110 GHz by means of external mixers (options R&S®FSE-B21 and mixers R&S®FS-Zxx required).

Scope of applicationEach R&S®ESIB offers features and test routines for the various stages of product development as well as for the final EMC certification tests.

The main users of the R&S®ESIB are

  • EMC test houses and service providers
  • Governmental organizations
  • Safety standard authorities
  • Military
  • Large industrial development and EMC labs (e.g. automotive)

Specifications

Frequency range
Input 1 20 Hz to 7 GHz / 26.5 GHz / 40 GHz depending on model
Input 2 20 Hz to 1 GHz
Preselection 9 or 10 preselection filters depending on model
can be switched off in analyzer mode
Resolution bandwidths (receiver and analyzer mode)
6 dB bandwidths
EMI bandwidths		 10 Hz to 10 MHz, in decimal steps
200 Hz, 9 kHz, 120 kHz, 1 MHz acc. to CISPR 16 tolerance
Resolution bandwidths (analyzer mode)
3 dB bandwidths 1 Hz to 10 MHz, in steps 1/2/3/5
Displayed average noise level
Receiver mode; 0 dB RF attn.;
preamp. 20 dB		 R&S ESIB7 R&S ESIB26 / 40
9 kHz to 150 kHz (RBW 200 Hz) –10 to –24 dBµV –10 to –24 dBµV
0.15 MHz to 30 MHz (RBW 9 kHz) –7 to –17 dBµV –7 to –17 dBµV
30 MHz to 1000 MHz (RBW 120 kHz) <–6 dBµV <–3 dBµV
1 GHz to 7 GHz (RBW 1 MHz) <6 to 9 dBµV <9 to 12 dBµV
7 GHz to 26.5 GHz (RBW 1 MHz) – <4 to 6 dBµV/6 to 9 dBµV
26.5 GHz to 40 GHz (RBW 1 MHz) – – /20 to 26 dBµV
Max. dynamic range (BW 1 Hz)
1 dB compr. point/displayed noise floor 162 dB 160 dB
Total level uncertainty (preamp. off)
Analyzer mode ≤ 1 GHz
1 GHz to 7 GHz		 ≤ 0.5 dB
≤ 1.0 dB
Receiver mode 150 kHz to 1 GHz
1 GHz to 4.5 GHz
4.5 GHz to 7 GHz		 ≤ 1.0 dB
≤ 2.0 dB
≤ 2.5 dB
Measurement speed
Sweep (analyzer mode) 1 µs to 2.500 s (zero span)
5 ms to 1.000 s (span ≥ 10 Hz)
Scan (receiver mode) 100 µs to 1.000 s
Max. input level
RF attn. ≥ 10 dB; sinewave AC voltage 137 dBµV (= 1 W)
Max. input pulse voltage (10 µs)
Input 2 (≤1 GHz); RF attn. ≥ 10 dB 1.500 V for the R&S ESIB7
250 V for the R&S ESIB26/40
