Overview
Product Highlights

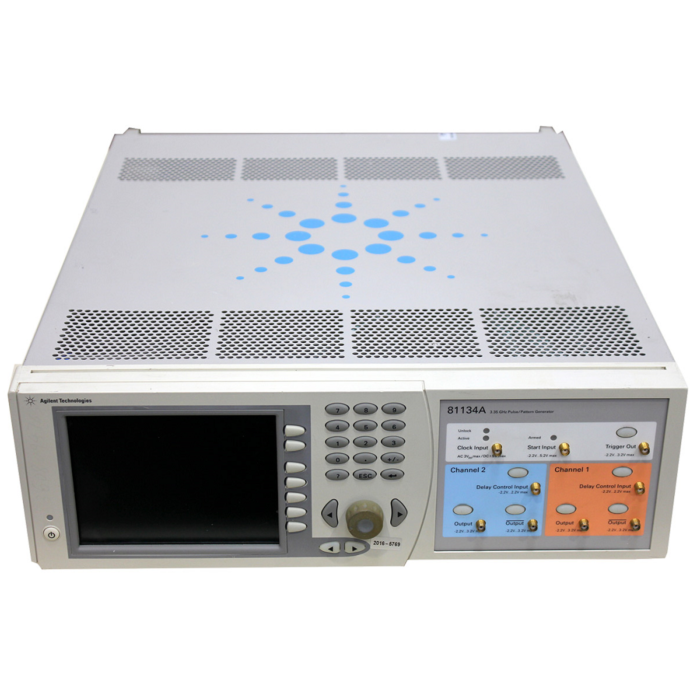

When timing and performance requirements are critical, for example in high-speed serial bus applications like PCI Express or Serial ATA, its fast rise times and low intrinsic jitter allow the precise and in-depth characterization of devices, e.g. receivers or backplanes. On top of that, it allows to generate application-specific signal levels like pre- and de-emphasis (PCI Express) or squelch (Serial ATA). The Keysight 81134A lets you test your DUT instead of the pulse or data source!
Hardware-based PRBS
Memory-based pattern generation
Basic test patterns for Infiniband, PCI-Express and Serial ATA
Deep 12 MBit pattern memory per channel supports tests that require long data streams like disk drive tests
PC-based Pattern Management Tool, easier to handle long patterns: generate, modify and store patterns on a Microsoft Windows based PC and an easy-to-use function to quickly load the selected pattern to the 81134A via one of the remote control interfaces GPIB, LAN or USB
Clock and data signals distortion
Versatile variable cross-point
Jitter insertion capabilities
Frequency, level and shape of injected jitter variation emulate real-world signals, e.g. by connecting an arbitrary waveform generator like the Keysight 33220A to the Pulse Pattern Generators delay control input
Graphics User Interface: quick access to all relevant parameters
Controllable via the interfaces GPIB, LAN and USB 2.0
