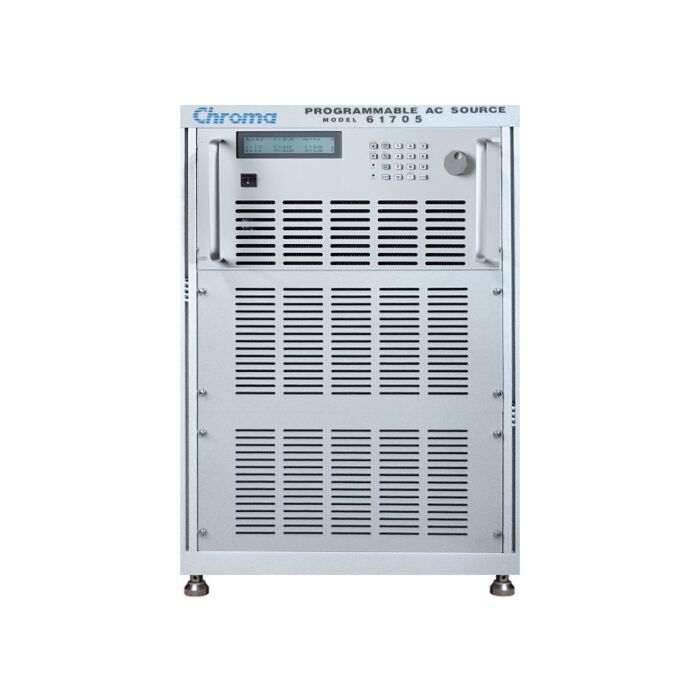

Chroma 61705 USED FOR SALE
Programmable AC Power Source 15-1.2kHz,12kVA/192A/300VDC,3pH

Order #: 61705-USED

Mfg #: 61705-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$36,248.75

Chroma 61705 USED FOR SALE

Programmable AC Power Source 15-1.2kHz,12kVA/192A/300VDC,3pH

Order #: 61705-USED

Mfg #: 61705-USED

$36,248.75

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Used instruments from TranscatTranscat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

Programmable AC Source 0~300V/DC, 15~1.2kHz, 3Ø 12KVA

The Chroma Programmable AC source model 61700 series delivers pure, 5-wire, 3-phase AC power. Unlike the traditional 3-phase AC source, it includes low power rating models at very low cost. Users can program voltage and frequency, measure the critical characteristics of the output on its LCD display. It delivers the right solution to simulate all kinds of input condition of UUT to be utilized in R&D and QA. It is also suitable for commercial applications from laboratory testing to mass productions.

  • Power: 1500VA, 3Ø (61701); 3000VA, 3Ø (61702); 4500VA, 3Ø (61703); 6000VA, 3Ø (61704); 12000VA, 3Ø (61705)
  • Voltage: 0~150V/0~300V
  • Frequency: 15~1.2KHz
  • Phase angle: 0~360°
  • Built-in PFC, provides input power factor over 0.98
  • Advanced PWM technology delivers high power density in a compact rack-mountable package
  • Built-in output isolation relays
  • AC+DC output mode
  • Programmable slew rate setting for changing voltage (optional function)
  • Turn on, turn off phase angle control
  • User-definable power-on status
  • Power line disturbance (PLD) simulation capability (optional function)
  • Comprehensive measurement capability: V, Irms, Ipk, I inrush, P, PF, CF of current etc.
  • Programmable r.m.s. current limit
  • Full protection: OP, OC, OV and OT protection
  • GPIB and RS-232C interface (optional)
  • Easy-use software for operation
