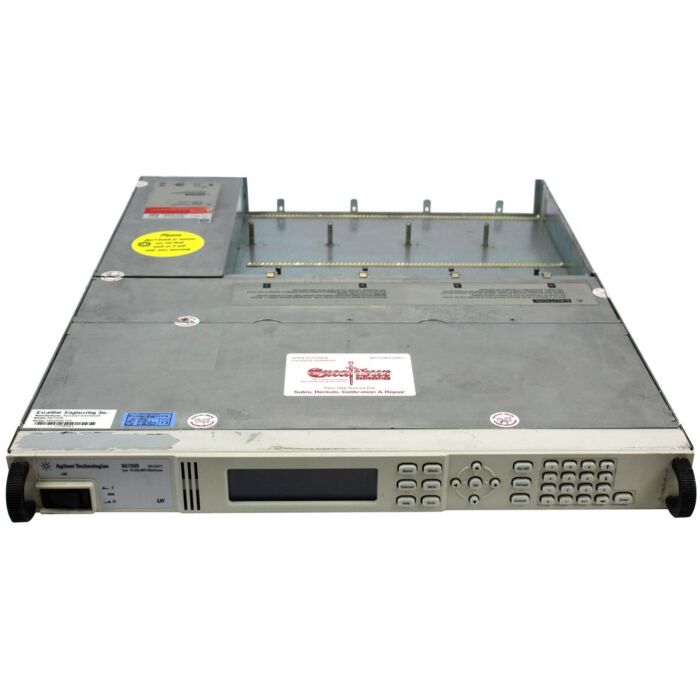

Used Keysight / Agilent N6700B DC Modular Power Supply (MPS) Mainframe, 400W, 4-Slot
400W, 4-Slot DC Modular Power Supply (MPS) Mainframe

Order #: N6700B-USED

Mfg #: N6700B

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,653.35

Used Keysight / Agilent N6700B DC Modular Power Supply (MPS) Mainframe, 400W, 4-Slot

400W, 4-Slot DC Modular Power Supply (MPS) Mainframe

Order #: N6700B-USED

Mfg #: N6700B

$2,653.35

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability:
In stock
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

Low-Profile Modular Power System Mainframe, 400W, 4 Slots

  • Maximum Total Output Power (= Sum of Total Module Output Power)
  • 400 W when operating from 100 - 240 VAC input AC Input
  • Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
  • Input Range: 86 VAC - 264 VAC
  • Power Consumption: 1000 VA typical
  • Fuse Internal fuse (not customer accessible)
  • INH input: 5 µs from receipt of inhibit to start of shutdown
  • Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)

The Keysight N6700B is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.
