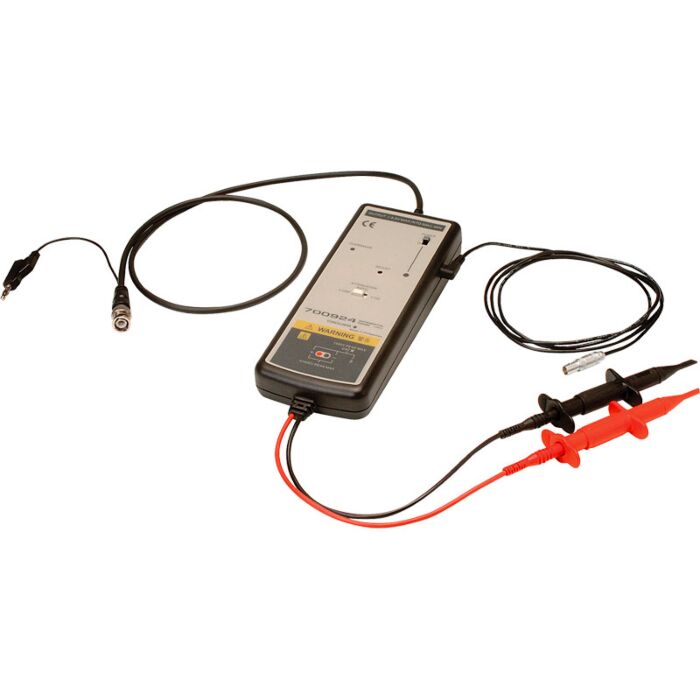

Used Yokogawa 700924 Differential Probe, 350V, 1000MHz
Order #: 700924-USED
Mfg #: 700924-USED
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights
- Bandwidth: DC to 100 MHz
- Attenuation: 1000:1/100:1
- Max. Input Voltage (to ground): ±1400 V (DC + ACpeak) or 1000 Vrms CAT III
- Max. Differential Voltage: ±1400 V (DC + ACpeak) at 1000:1 attenuation & ±350 V (DC + ACpeak) at 100:1 attenuation
- Probe Power: Internal battery or probe power supply
With increases in the speed of measured signals in recent years, it has become necessary to make floating measurements over a wide frequency band. The 700924 differential probe lets you make wide-band (100 MHz) differential input measurements by just connecting the probe to the input of a single-end input digital oscilloscope.
Oscilloscope input amplifiers are normally single-ended. They do not provide accurate measurements when used in combination with a 10:1 passive probe for measuring the gate-to-source voltage of a switching power supply, or potential difference with a common mode voltage in elements such as Insulated Gate Bipolar Transistors (IGBTs).
Furthermore, there is a risk that current will enter through the oscilloscope ground line and damage the oscilloscope.
Input type | Balanced differential input |
---|---|
Frequency band | DC up to 100 MHz (-3 dB) |
Input attenuation ratio | Switched between 1/100 and 1/1000 |
Input impedance | Approximately 4 MΩ, approximately 10 pF parallel |
Gain accuracy |
|
Maximum allowed differential voltage |
|
Maximum common mode input voltage | ±1400 V (DC + ACpeak) or 1000 Vrms (both 1/100 and 1/1000 ranges) |
Maximum input voltage | ±1400 V (DC + ACpeak) or 1000 Vrms (1/1000 range) |
Common Mode Rejection Ratio (CMRR) | -80 dB (60 Hz), -50 dB (1 MHz) |
Output voltage | ±3.5 V |
Output impedance | Used with 1 MΩ input impedance |
Power supplies | Dry cells, four R6P (SUM-3); when using the AC/DC adapter, use an output voltage of 6 V/200 mA or greater/center plus |
Dry cell life | Approximately 2 hours under continuous use |
External dimensions (approximate) | 207 mm x 83 mm x 38 mm1 |
Total length | Approximately 1.5 meters |
Weight | Approximately 800 grams (excluding dry cells) |
Approved standards |
|
-
