Overview
Product Highlights

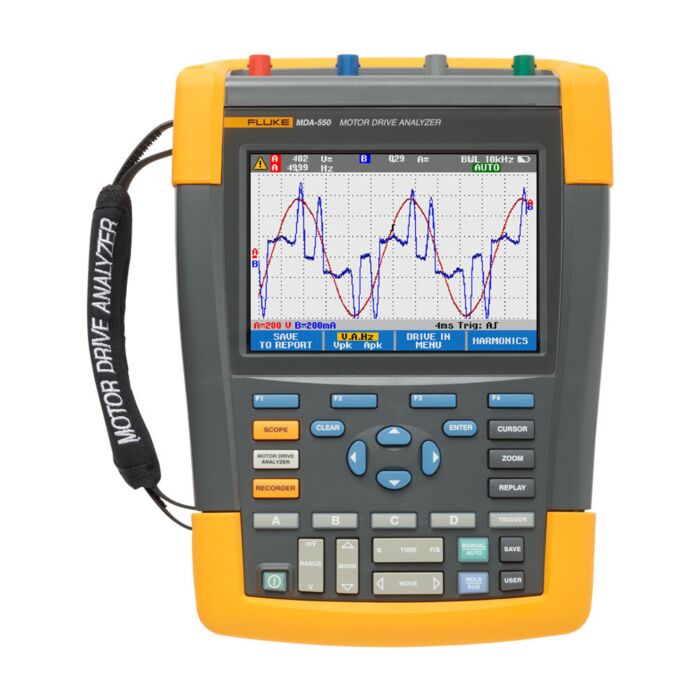

Measures inverter output voltage, DC bus voltage and ripple voltage, harmonics, unbalance
Three powerful test tools in one: Motor-drive analyzer, waveform analyzer and recording data logger all in one
Four input channels for voltage and current signals
Measure key motor-drive parameters including
Voltage, current, DC Bus voltage level and AC ripple, voltage and current unbalance and voltage modulation
Additionally, the MDA-550 measures: harmonics, and motor shaft voltage discharges and is supplied with accessories for those measurements
The MDA-550 also performs perform extended harmonics measurements to identify the effects of low and high order harmonics on your electrical power system.
Conduct guided measurements for motor-drive input, DC bus, drive output, motor input and shaft measurements (MDA-550) with graphical step-by-step voltage and current connection diagrams.
Use simplified measurement setup with preset measurement profiles to automatically trigger data collection based on the chosen test procedure.
Create reports quickly and easily that are perfect for docu
