Order #: HDPQ XPLORER-400-USED
Mfg #: HDPQ XPLORER-400-USED
Used Druck DPI620-KIT Genii Modular Calibrator & HART Communicator kit
Order #: HDPQ XPLORER-400-USED
Mfg #: HDPQ XPLORER-400-USED
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Product Highlights
- Portable Power Quality, Demand & Energy Analysis
- 7-Inch Wide Screen Color, Touch LCD
- 4 Differential 50/60Hz, Ac/Dc Voltage Channels
- 400Hz For Aviation, Naval, Military (Xplorer-400)
- 1000V Cat III, 600V Cat IV
- 32Us/40Us Transients. 1Us (Xplorer, Xplorer-400)
- 4 Ac/Dc Current Channels With Flex Probe Power
- IEC 61000-4-30:2008 Class A, En50160:2010
- IEEE 1159, 519:2014, 1453, 1459 (Xplorer, Guide)
- Sag/Dip, Swell, Transients, Unbalance, Flicker
- Harmonics, Interharmonics, Mains Signaling
- Inrush With 10K Cycle Recording (Guide, Xplorer/400)
- Intelligent Answer Modules® (Guide, Xplorer/400)
- Easy-To-Use With Automatic Or Manual Setups
- 4Gb Internal Flash Memory. External Storage Via USB
- Ethernet, 802.11 Wireless, Bluetooth, USB OTG
- Apps For Apple, Android Tablets & Smartphones
- VNC Remote Control For PC, Mac, Ios & Android
- GPS, NTP, Internal Time Synchronization
- Fully Compatible With Dranview 7
- Rugged Ip50 Enclosure With Easel & Cable Management
- Universal Power Supply With Multi-Country Plugs

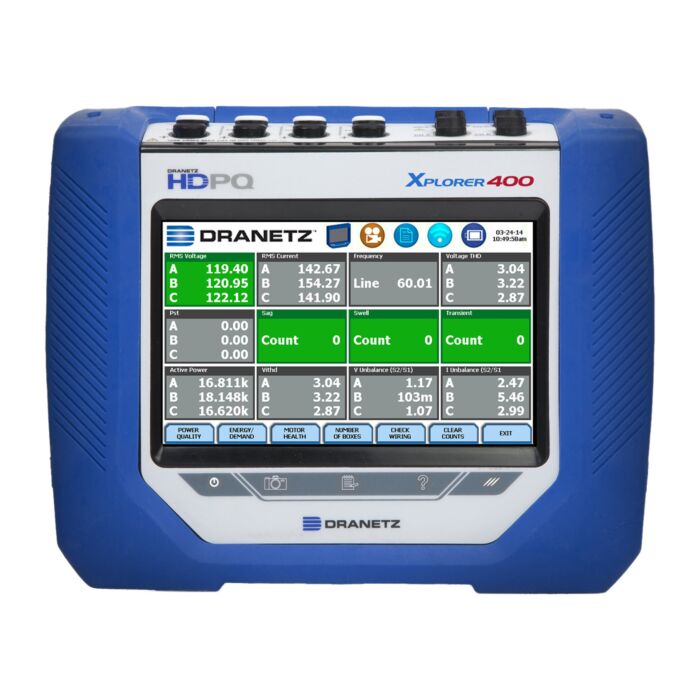

The Dranetz HDPQ® family of Power Quality, Demand and Energy instruments is the latest in a long line of industry leading products from Dranetz. The Dranetz HDPQ family is comprised of four portable instruments, with the difference being the availability of Wi-Fi communications, advanced intelligent AnswerModules, high speed transient capabilities, 400Hz monitoring and other advanced features. The Dranetz HDPQ instruments are: Visa, Guide, Xplorer and Xplorer-400. Each is a successor to the Dranetz PowerVisa, PowerGuide, PowerXplorer and PowerXplorer-400.
The Dranetz HDPQ merges the state-of-the-art power monitoring capabilities you expect from Dranetz, with 'best in class' communication capabilities to provide users with a revolutionary monitoring experience. Each instrument has a built-in 7-inch color wide screen LCD user interface for monitoring setup and data review. By putting operator safety first, the Dranetz HDPQ also enables users to review data and change settings remotely from virtually any Smartphone or Tablet mobile device, along with traditional PC and Mac laptops and desktops. Just hook up the instrument, close the cabinet doors to 'safe' the environment and use either a free 3rd party VNC App or our Dranetz HDPQ Apple or Android App via Ethernet, Wireless, or Bluetooth for remote control from anywhere with connectivity to the instrument.
