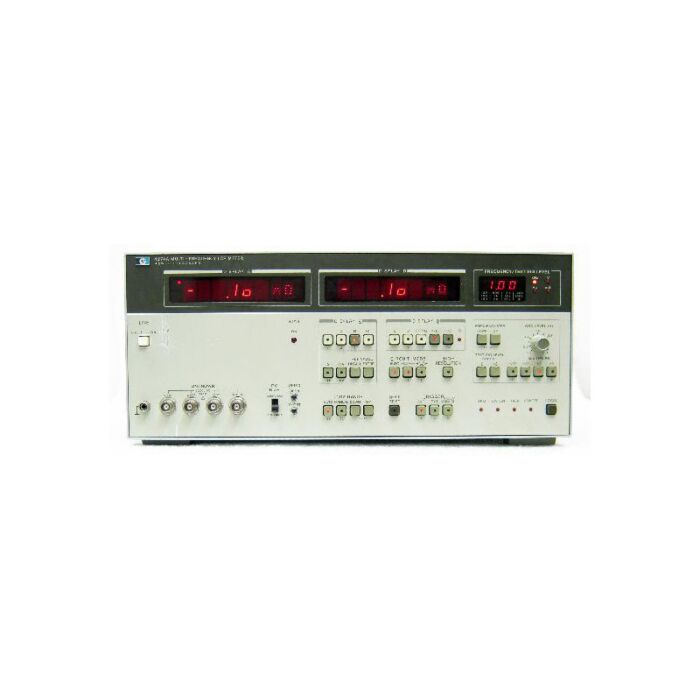

Used Keysight / Agilent 4275A Multi-frequency LCR Meter, 10kHz to 10MHz

Product Highlights

The HP 4275A LCR Meter offers many features such as multi-spot frequencies, continuously variable test signal levels, multi-parameter measurements and basic accuracy of 0.1% with 4 1/2 or 5 1/2 (high res mode) digital resolution. This enables the 4275A to cover a wide variety of measurement requirements on most electronic materials and devices over a frequency range of 10 kH to 10 MHz in 10 spot frequencies.

• Measure: L/C - D/Q/ESR/G R - X/B/L/C Z - ?
• Test Frequencies: 10 kHz - 10 MHz
• Test Signal Level: 1 mV - 1 V rms
• 0.1% Basic Accuracy

Test parameters:

• Inductance: 100.00 nH to 10.00 H (accuracy 0,1%)
• Capacitance: 1.0000 pF to 100.00 µF (accuracy 0,1 %) .
• Resistance, impedance: 1.0000 Ohm to 10.000 MOhm
• Q-Factor: 0,01 to 9900
• Conductance: 1.0000 µS to 10.00 S (accuracy 0,1%)
• Phase angle: 0 to ±180 degree
