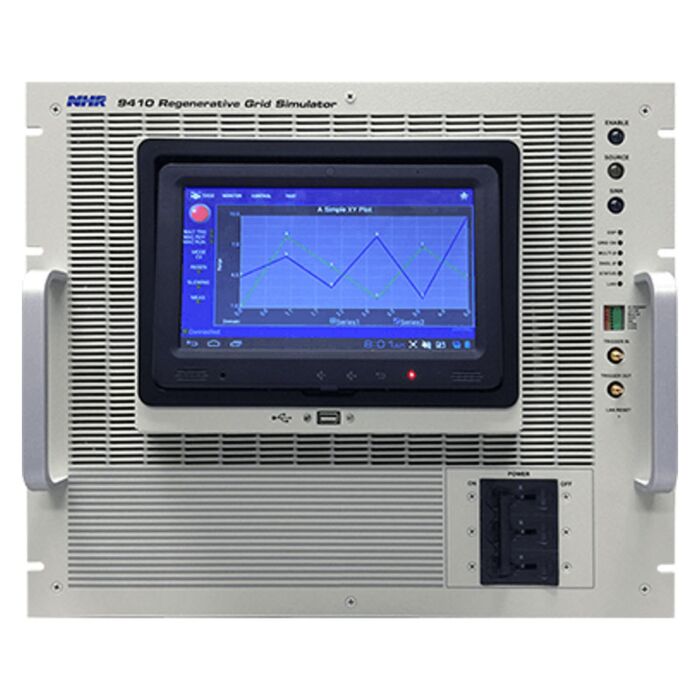

Used NH Research 9410-36 AC/DC Power Supply, 1-to 3-Phase, 400V/Phase, 90A/Phase, 36kW
AC/DC Power Supply,1-to 3-Phase 400V/Phase,90A/Phase,36kW

Order #: 9410-36-USED

Mfg #: 9410-36-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$73,743.75

Used NH Research 9410-36 AC/DC Power Supply, 1-to 3-Phase, 400V/Phase, 90A/Phase, 36kW

AC/DC Power Supply,1-to 3-Phase 400V/Phase,90A/Phase,36kW

Order #: 9410-36-USED

Mfg #: 9410-36-USED

$73,743.75

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

The 9410 from NH Research is a four-quadrant (bi-directional) AC/DC source with selectable phase outputs, a built-in waveform-digitizing measurement system and robust line disturbance creation tools. When used in the regenerative (sink) mode, it sends returned power back to the facility mains rather than being dissipated as heat. The most frequent application of the 9410 is use as a grid simulator for testing PV inverters and other grid-tied products for compliance to industry standards.

Features

  • 8 models 4kW/10.5kVA to 96kW/252kVA
  • Output AC Voltage Ranges 175, 350VRMS L-N
  • Output DC Voltage 200, 400VDC
  • Output Frequency DC, 30 to 100Hz
  • Programmable 1, 2 or 3-Phase modes
  • Full 4 quadrant AC source operation
  • High resolution waveform capture on all V & I
  • Sink power regenerated back to facility
  • 9" Touch-Panel user interface
  • SCPI programming & NI LabVIEW drivers

Advantages

  • Bi-directional AC Inverter testing & µgrid simulation
  • More reactive power per kW
  • Simplifies automated test stand development
    • Software selectable 1, 2, or 3 Phase operation
    • Isolated digital inputs & outputs
    • Built-in SW watchdog & safety limits
  • Software tools to shorten test development time
    • PC-based tools & NI certified drivers
    • NI certified LabVIEW & IVI-C/IVI-COM drivers
    • Optional: Enerchron® test sequencer

Benefits

  • Regenerative, returns greater than 85% of power to the facility, which provides significant electrical savings.
  • Field upgradeable to higher power
  • Fully emulate any utility/grid condition
  • Simulate non-ideal Phase phase angles (A-B & A-C)
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Model Number 9410-36
AC Output Ratings
Phases/Output Channels
Power, Max (1Φ or 3Φ) 36kW/94.5kVA
Current Ranges (RMS per Φ) 18, 90 A/Φ
Current Ranges (RMS 1Φ) 54, 270A
Peak Current 3 X Max RMS
Frequency 30-100Hz (option up to 880Hz)
Voltage Ranges, L-N 175, 350V (Split Phase 250V Max)
Accuracy 0.2% Set + 0.2% Rng
Resolution 0.005% Rng
Distortion (THD) <1% @ 50/60Hz (Full power into resistive load at 480 VRMS (L-L))
Response Rate 1V/µS (10% to 90% measured at 90 degree turn-on into resistive load)
Custom Waveforms Sine, n-Step Sine, Triangle, Clipped-Sine, Arbitrary (user defined)
Phase Angle Control 0 to 359 degrees/1 degree resolution
DC Output Ratings
Power Max (1ch or 3ch) 36kW
Current Ranges (Per Ch.) 18, 90A/CH
Current Ranges (Per System) 54, 270A
Voltage Ranges 200, 400 VDC
Accuracy 0.2% Set + 0.2% Range
Ripple <800mV RMS
AC & DC Measurements
Peak Voltage 250, 500V
Accuracy (AC RMS) 0.1% Rdg + 0.06% Rng
Accuracy (DC) 0.1% Rdg + 0.1% Rng
Accuracy (Peak) 0.5% Rdg + 0.2% Rng
Resolution 0.005% Rng
Peak Current (per Ch.) 60, 300A
Accuracy (AC RMS) 0.2% Rdg + 0.06% Rng
Accuracy (DC) 0.2% Rdg + 0.06% Rng
Accuracy (Peak) 0.5% Rdg + 0.2% Rng
Resolution 0.005% Rng
Peak Power V Range x I Range
Accuracy (AC RMS) 0.2% Rdg + 0.06% Rng
Resolution 0.005% Rng
Additional Measurements Energy (Ah, kWh, kVAh), AC Crest Factor, AC Power Factor, Waveform Capture
Physical
Enclosure Cabinet
Size (HxWxD) 61 x 23 x 30"/1549 x 584 x 762mm
Weight 505lbs/229kg
