Order #: 83620B-USED
Mfg #: 83620B

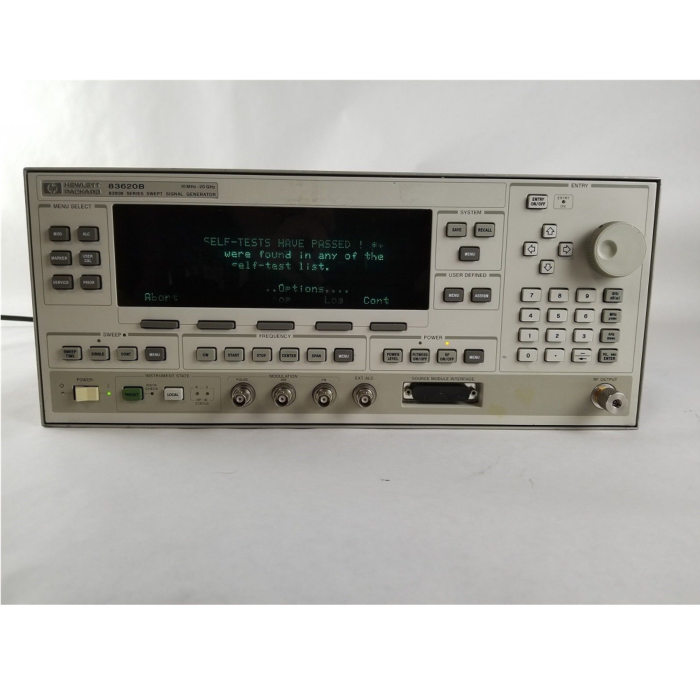

Used Keysight / Agilent 83620B Synthesized Swept-Signal Generator, 0.01 to 20GHz
Order #: 83620B-USED
Mfg #: 83620B
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Keysight 83620B Highlights
The Keysight 83620B synthesized sweeper for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83620B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 20 GHz.
- +13 dBm calibrated output power
- -50 dBc harmonics <20 GHz typical
- SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
- Complete analog sweeper
- 1 Hz frequency resolution (Option 008)
- Pulse, amplitude and frequency modulation (8360B Series only)
- -110 dBm output power with step attenuator (Option 001)
- Options: 001:Step Attenuator, 002:Internal modulation generator, 004:RF output connector moved to rear panel, 008:1Hz Frequency Resolution
-
-
