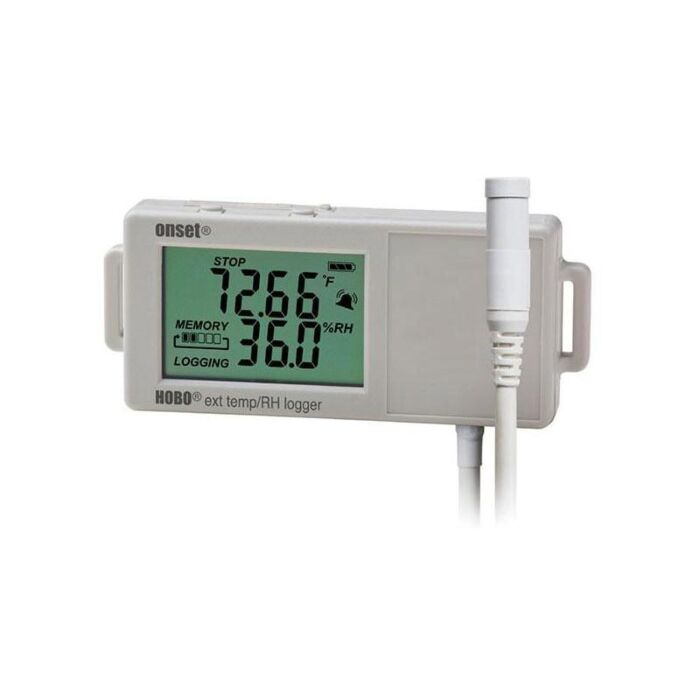

Onset HOBO Data Loggers UX100-023 FOR SALE
Temperature & Relative Humidity Data Logger with Calibration
Order #: UX100-023-USED
Mfg #: UX100-023-USED
$219.45
Onset HOBO Data Loggers UX100-023 FOR SALE
Temperature & Relative Humidity Data Logger with Calibration
Order #: UX100-023-USED
Mfg #: UX100-023-USED
$219.45
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
- Easy-to view LCD display
- Large memory capacity
- Visual high & low alarm thresholds
- New Burst and Statistics logging modes
- User-replaceable RH sensor
- Temperature Sensor
- Range: -20° to 70°C (-4° to 158°F)
- Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
- Resolution: 0.024°C at 25°C (0.04°F at 77°F); see Plot A
- Response time: 6 minutes in air moving 1 m/s (2.2 mph)
- Drift:
- RH Sensor
- Range: 1% to 95% at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%
- Accuracy: ±2.5% from 10% to 90% typical to a maximum of ±3.5% including hysteresis, see Plot B
- Resolution: 0.05% at 25°C (77°F)
- Response time: 5 minutes to 90% in airflow of 1 m/s (2.2 mph)
- Drift:
- Cable length: 1.83 m (6 ft)
- Logger
- Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
- Launch/readout: 0° to 50°C (32° to 122°F) per USB specification
- Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
- Logging modes: Normal, Burst or Statistics
- Memory modes: Wrap when Full or Stop when Full
- Start modes: Immediately, Push Button, Date & Time or Next Interval
- Stop modes: When Memory Full, Push Button, or Date & Time
- Restart mode: Push Button
- Time Accuracy: ±1 minute per month at 25°C (77°F), see Plot C
- Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
- Battery type: One 3V CR2032 lithium battery
- Memory: 128 KB (84,650 measurements, maximum)
- Download type: USB 2.0 interface
- Full memory download time: 20 seconds
- LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
- Size: 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.)
- Weight: 30 g (1.06 oz)
- Environmental rating: IP50
