Used Keithley S46-18 High Performance RF/Microwave Switch System, 18GHz
High Speed Differential Multiplexer Module, 32CH
Order #: 7703-USED
Mfg #: 7703
$623.75
Used Keithley S46-18 High Performance RF/Microwave Switch System, 18GHz
High Speed Differential Multiplexer Module, 32CH
Order #: 7703-USED
Mfg #: 7703
$623.75
Request a Used Instrument Quote
Have a Question? Speak to a Transcat Expert: 800.264.4059
Transcat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support
Availability: Call for Availability
This item has NEW version starting at
$2,632.00
Shop now
Product Highlights

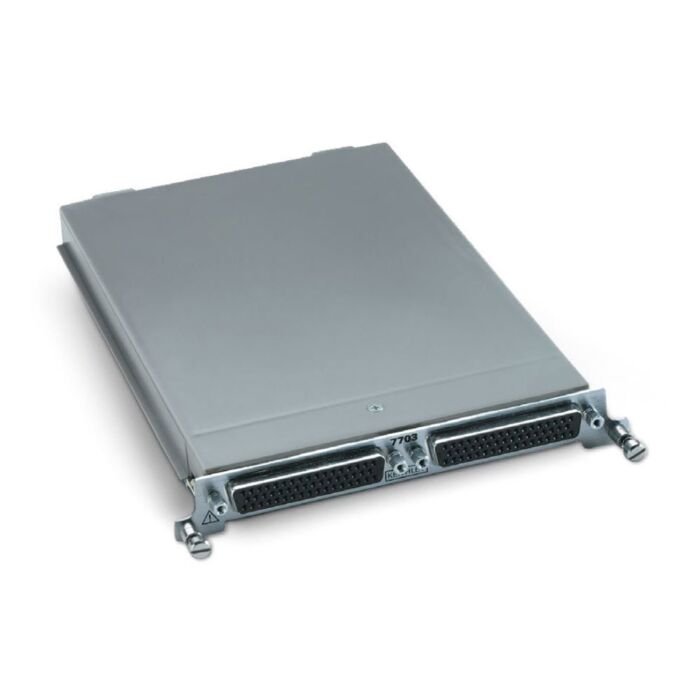

The 7703 plug-in module offers 32 channels of 2-pole or 16 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. The non-latching reed relays provide high speeds and are designed for 300 volt, 500 mA; 10 VA. The relay closures are stored in onboard memory. The 7703 is ideal for RTD and thermistor temperature applications.
- Relay actuation time of less than 1ms for high-speed scanning
- Two- or four-wire measurement
- Two 50-pin female D-sub connectors are standard for secure hook-up and quick teardown
