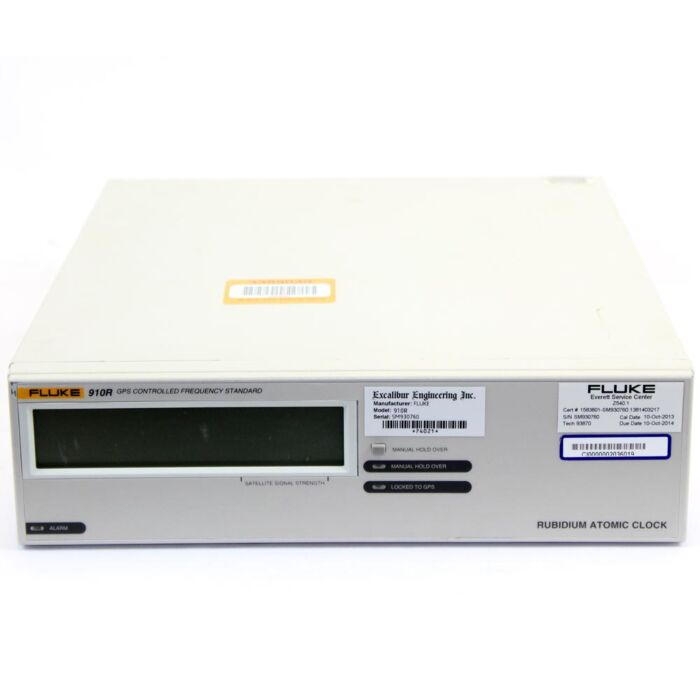

Fluke 910R Used for Sale GPS Controlled Rubidium Frequency Standard
GPS Controlled Rubidium Frequency Standard

Order #: 910R-USED

Mfg #: 910R

Questions about availability or need help? Contact Us:

(800) 633-0561
$10,484.60

Fluke 910R Used for Sale GPS Controlled Rubidium Frequency Standard

GPS Controlled Rubidium Frequency Standard

Order #: 910R-USED

Mfg #: 910R

$10,484.60

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available as RENTAL at
Call for price
Shop now

Product Highlights

  • Unique traceability feature means no more re-calibrations
  • Two high-stability models to meet your application, and fit your budget
  • Up to 13 outputs, maximizing cost efficiency
  • Central or remote monitoring, management and data collection, using the 910/910R Ethernet-port
  • Two high-stability operating modes to suit your application
  • Designed for portability too
  • GPSView Software
  • With Optional 70: 5 extra 10 MHz outputs
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
General Specifications
Operating Modes
Disciplined Mode: The frequency deviation between the internal timebase oscillator and the received GPS-signal is used to continuously adjust the oscillator (disciplining). The resulting frequency offset and adjustment data is stored in non-volatile memory every 24h, to enable printout of the traceability record. The actual frequency offset (24h mean value) is calculated and displayed on the front panel.
Hold-over Mode: The internal oscillator is not adjusted. This mode is normally automatically entered when there is no usable received GPS-signal. This mode can also be selected manually be activating the Manual hold-over key. If Manual hold-over is set together with a valid received GPS signal, the actual frequency offset is calculated and displayed plus stored in non-volatile memory every 24h.
Frequency stability - locked to GPS 910R (GPS-Rb)
Frequency offset (24h mean):  <1x10-12*
Short term (Allan dev.):  <1 x 10-12 (t = 100s)
   <3 x 10-12 (t = 100s)
   <1 x 10-11(t = 10s)
   <3 x 10-11 (t = 1s)
Warm up (+25°C):  20 mins to lock
 *At temperatures 23°C + 3°C
Frequency stability - locked to GPS 910 (GPS-OCXO)
Frequency offset (24h mean):  <1x10-12*
Short term (Allan dev.):  <1 x 10-12 (t = 100s)
   <3 x 10-12 (t = 100s)
   <1 x 10-11(t = 10s)
   <3 x 10-11(t = 1s)
Warm up (+25°C):  20 mins to lock
  *At temperatures 23°C + 3°C
Frequency stability – Hold-over 910R
(GPS-Rb)
Aging/24h:  <2 x 10-12 (typ.)
Aging/month:  <5 x 10-11
Temp. (0°C…+50°C):  <3 x 10-10
Temp. (23°C ± 3°C):  <2 x 10-11 (typ.)
Short term (Allan dev.):  <3 x 10-12 (t = 100s)
Frequency stability – Hold-over 910
(GPS-OCXO)
Aging/24h:  <3 x 10-10
Aging/month:  <3 x 10-9
Temp. (0°C…+50°C):  <2.5 x 10-9
Temp. (23°C ± 3°C):  <4 x 10-10 (typ.)
Short term (Allan dev.):  <1 x 10-11 (t = 100s)
   <5 x 10-12 ( t = 10s)
   <5 x 10-12 (t = 1s)
Warm up (+ 25°C):  10 minutes to 5 x 10-9
Phone Noise - 910R
Offset  Phase Noise
1 Hz:  -80 dBc/Hz (typ.)
10 Hz:  -90 dBc/Hz (typ.)
100 Hz:  -130 dBc/Hz (typ.)
1 KHz:  -140 dBc/Hz (typ.)
10 KHz:  -140 dBc/Hz (typ.)
100 KHz:  -145 dBc/Hz (typ.)
Phone Noise - 910
Offset  Phase Noise
1 Hz  -100 dBc/Hz (typ.)
10 Hz  -120 dBc/Hz (typ.)
100 Hz  -130 dBc/Hz (typ.)
1 KHz  -135 dBc/Hz (typ.)
10 KHz  -135 dBc/Hz (typ.)
100 KHz  -135 dBc/Hz (typ.)
Reference outputs (BNC)
10 MHz:  sine wave, 0.5V rms in 50O
5 MHz:  Sine wave, 0.5V rms in 50O
2.048 MHz (opt. 75):  +/-1.2V +/-10% in 75 ohms (G.703:10)
1 pps:  TTL-levels; low < 0.4V, high > 2V in 50O load
Pulse output (opt. 75):  TTL-levels; low < 0.4V, high > 2V in 50O load
5 additional 10 MHz outputs (option 70)
See specification for 10 MHz above
Multiple Reference outputs (option 71)
Sine wave outputs:  10, 5, 1 and 0.1 MHz >1 Vrms into 50 Ω
Pulse output:  0.1 MHz; >3 Vp-p into 50 Ω. 0 V =LO <0.8 V, 3 V
10 MHz and 5 MHz & 2.048 MHz (opt 72) outputs
Freq. Stability: See frequency stability specs for 910 and 910R
5 additional 13 MHz outputs (option 73)
Impedance:  50 Ω
Output signal:  TTL (symmetrical)
Typical levels into 50ƒn Ω  High voltage: 2.35 V
   Low voltage: 0 V
Risetime:  10 % - 90 %: 2 ns
Jitter:  < 0.01 UI
Long term stability:  Same as main reference
1-pps output (locked to GPS)
Duty Cycle:  Approx. 20%
Jitter:  <60 ns rms relative to UTC or GPS (position hold, SA on)
Pulse output
(option 75)
The frequency is set via the included PC-program
Selectable frequency:  1/(N x 10-7) Hz, N is an integer
Factory default setting:  1 Hz
Duty cycle:  50%
Jitter:  <500 ps rms
Freq. Stability:  See frequency stability specs for 910 and 910R
Ethernet interface
(option 76)
Communication Port:  Connector: RJ45
   Protocol: 10Base-T
   Buffer RAM: 1 kbit
Configuration Port:  Connector: Dsub9, RS232
Internal data storage
24h-freq. Offset:  2 years data, non-volatile memory
Adjustment data:  2 years data, non-volatile memory
Controls
Manual
Hold-over:
 Inhibits automatic GPS-adjustment and forces hold-over operation. This increases the short-term stability, when the internal Rubidium- or OCXO-reference is free running without any correction from the GPS-monitoring system.
LED Indicators -
Locked to GPS
ON:  Disciplined mode
OFF:  Hold-over mode
LED Indicators -
Alarm
ON:  Alarm condition reported by instrument hardware. Explanatory text in 7-segment display area advises.
OFF:  Normal operation
LED Indicators - Manual Hold-over
ON:  Forced hold-over mode. If GPS signal is valid, the 24h frequency offset is displayed. Otherwise "-----" is shown.
OFF:  Automatic choice of disciplined or hold-over mode depending on "Locked to GPS" status.
GPS-receiver
Antenna connector:  Type N
Channels:  8, parallel tracking
Carrier, code:  L1, C/A
Antenna (option 01)
Type:  active L1
Operating temp.:  -40°C to +70°C
Height:  81 mm (3.2") (excl. connector)
Weight:  >30 dB
Gain:  TNC
Antenna cable
(option 02)
Type:  RG213
Length:  20 m
Connectors:  N-type and TNC (male)
Cable delay:  101 ns.
Attenuation:  Approx. 8 dB at 1.6 GHz
PC-connection
Interface:  RS-232, DTE
Connector:  9-pin male DB9, Rx on pin 2, Tx on pin 3, GND on pin 5
Baud rate:  9600 bps
Data structure:  8 data bits 1 stop bit, no parity
Fan
Temperature controlled
Environmental
Temperature:  0°C...+50°C (operating)
   -40°C...+70°C (storage)
Safety:  Compliant to CE: EN 61010-1 + A1 (1992) + A2 (1995)
EMI:  Compliant to CE: EN 1326-1 (1997)
Power consumption
Line voltage:  100...240 V (±10%)
Line frequency:  47..63 Hz
Power 910R:  <75 W at warm-up <35 W continuous operation
Power 910:  <25 W at warm-up <12 W continuous operation
Calibration Documentation Statement of calibration practices
Size
WxHxD:  315 x 86 x 395 mm
   12.4" x 3.4" x 15.6"
Weight

910R  4.4 kg net, 7.4 kg shipping (9.7 lb net, 16.3 lb shipping)
910  3.9 kg net, 6.9 kg shipping (8.6 lb net, 15.2 lb shipping)
