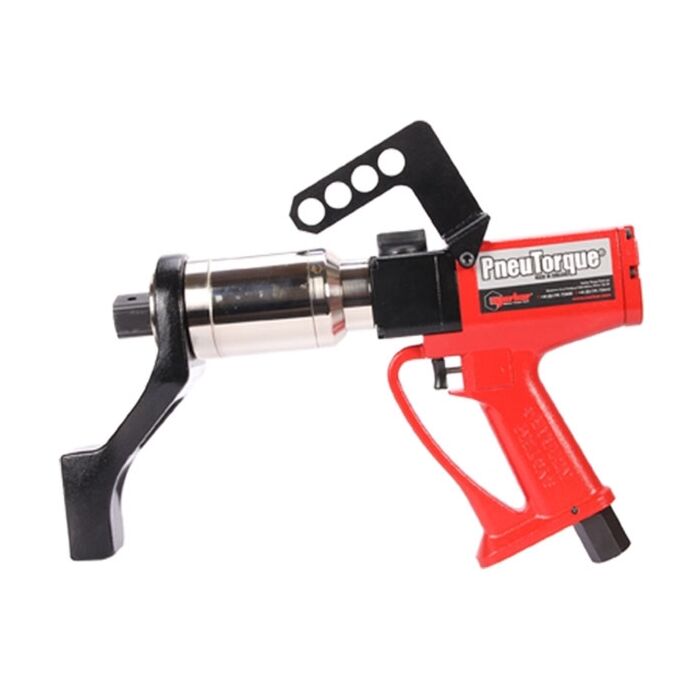

Norbar Torque Tools PTM-72-1350-B

Pneumatic Torque Multiplier 1" Sq Drive, 1350 N.m.

Order #: 18103.B08

Mfg #: 18103.B08

Questions about availability or need help? Contact Us:

Special Price $9,388.65 Regular Price $9,882.80

Qty

Norbar Torque Tools PTM-72-1350-B

Pneumatic Torque Multiplier 1" Sq Drive, 1350 N.m.

Order #: 18103.B08

Mfg #: 18103.B08

Special Price $9,388.65 Regular Price $9,882.80

Availability: Call for availability

New Purchase Calibration

None

Calibration without Data + $74.55

Calibration with Data + $98.70

Accredited Calibration with Data and Uncertainties + $139.65

Add Calibration

Qty

Accuracy: +/-5%
Operates between: 200.0 - 1000.0 lbf·ft 270.0 - 1350.0 N·m
Square Size: 1"
Max Air Pressure: 6.3 bar
Air Consumption: 19 litres/sec (40 CFM)
Tool Weight: 6.1 kg
Reaction Plate Weight: 0.7 kg
Free Speed: 86 rpm
Quiet - less than 85 dB(A) when under load.
Non impacting - low vibration levels make these tools comfortable and safe to use.
Square drive is quickly and easily replaceable.
'Soft Start' trigger controls / aids socket location and allows gradual and safe reaction location.
For safety, gearbox can rotate independently from the handle so that reaction forces are not transmitted back to the operator.
Light weight - single direction 2000 N·m stall tool weighs just 6.2 kg.
On Bi-Directional tools, the direction control knob is locked while the tool is running to prevent accidental damage to the gearbox.
Fast - 1000 N·m version has a free speed of 140 rpm for rapid bolt run-down.
