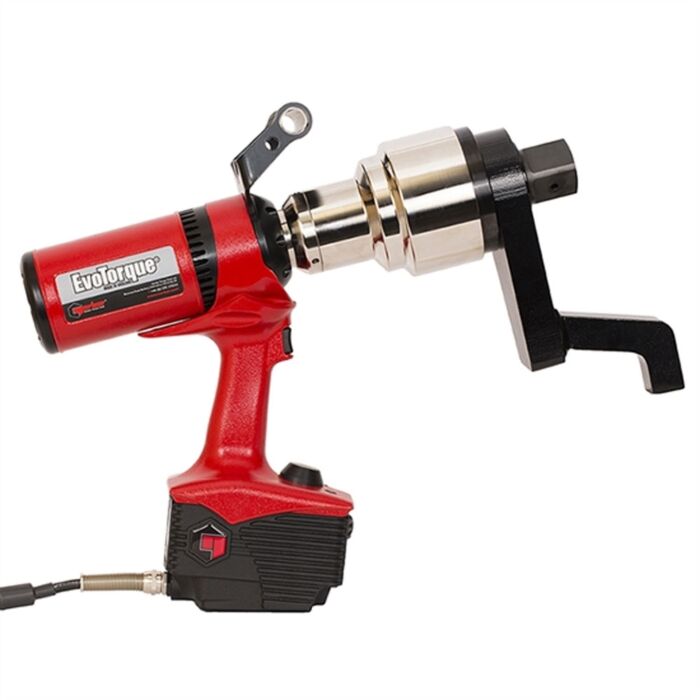

Norbar Torque Tools ET2-119-7000-230
Electronic Torque Multiplier 7000Nm,1-1/2"Dr.,230V
Order #: 180226.B12
Mfg #: 180226.B12
Special Price
$26,250.06
Regular Price
$27,343.82
Norbar Torque Tools ET2-119-7000-230
Electronic Torque Multiplier 7000Nm,1-1/2"Dr.,230V
Order #: 180226.B12
Mfg #: 180226.B12
Special Price
$26,250.06
Regular Price
$27,343.82
Availability: Ships in 3-4 weeks
Product Highlights
- Accuracy: ±3%
- Operates between: 700.0 - 7000.0 N·m/1030.0 - 5200.0 lbf·ft
- 1 1/2" Square Drive
- 3.3 rpm
- Tool Weight of 16.8kg
- Calibrated to 20% - 100% of tool's maximum capacity
- Operational targets can be set from 10% of tool capacity
- 'Usage' counter gives the ability to see the amount of times the tool has been used since the last reset
- "Operation Direction" designed primarily for undoing bolts. When doing sequence tightening, it is now possible to undo an incorrectly tightened bolt without interrupting the sequence
- 2 Stage Tightening gives faster application of a Snug Torque & Angle Target
- "Turn Angle" option can be used to check if bolts have already been tightened in an assembly process
- Allows tool integration into third party control systems
- Maximum Audit Mode target angle increased to 720 degrees
- Ability to produce and store real time graphs via EvoLog
- 2 different lock levels, lock level 1 as per previous lock, lock level 2 will not allow user to exit the run screen or change the target
- Torque, Torque & Angle, Torque & Angle with Final Torque or Torque Audit Modes
- Each tool is supplied with a traceable calibration certificate
