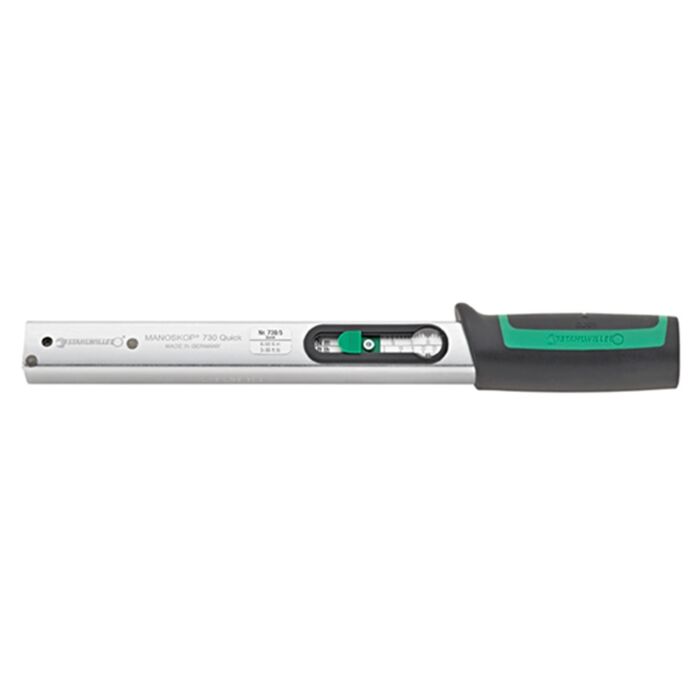

Stahlwille 730A/5 QUICK

Product Highlights

• Click-type
• Mount for interchangeable insert tools
• QuickRelease safety lock
• Rapid setting by easy to operate locking lever inside the handle, ergonomically designed, non-slip adjusters with a thumb recess and magnifying glass integrated into the window
• Optimized convex handle for strain-free working
• Dual stop signal
• Twin scales N•m/ft•lb and N•m/in•lb
• The measuring element is only under load while force is being applied, no need for manual reset to zero
• Can be applied for either clockwise or anticlockwise tightening by turning the inserts over
• Any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
• Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
• With certificate
• Display deviation value ± 4%
• size a/5
• Scale Range 6-50 N·m
• Scale Range 50-440 in·lb
• Scale Division 2 N·m
• Scale Division 10 in·lb
• Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square) mm 9x12
• b mm 28
• h mm 23
• L mm 315
• LF mm 288
• SF mm 17,5
• Weight g 805
