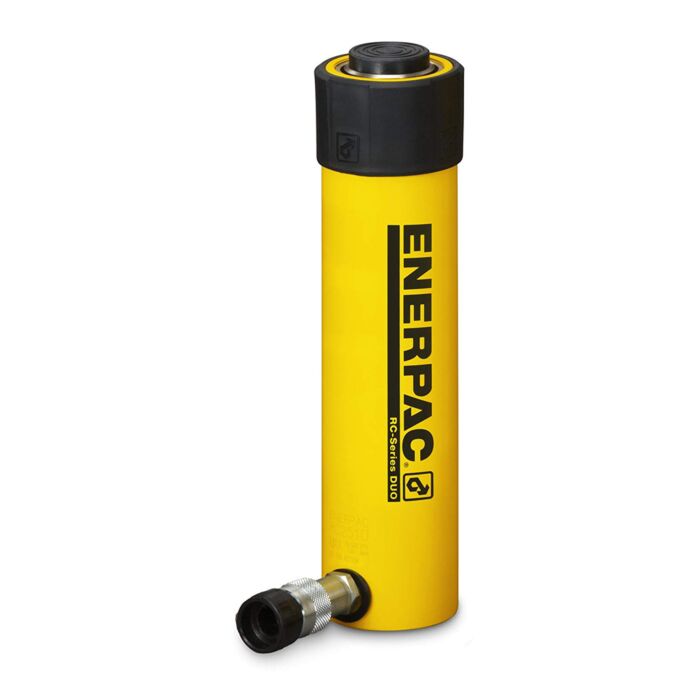

Enerpac RC-308 Gen.Purpose Hydraulic Cylinder, 32.4 Ton Cap., 8.25" Stroke
Order #
RC308
|
Mfg #
301447
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
- Unique GR2 Bearing Design, reduces wear, extending life
- Collar threads and plunger threads enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
Specifications
| Cylinder capacity | 30 tons (32.4 maximum) |
| Stroke length | 8.25 inches |
| Effective area | 6.49 square inches |
| Oil capacity | 53.56 cubic inches |
| Cylinder bore diameter | 2.88 inches |
| Collapsed height | 15.25 inches |
| Extended height | 23.50 inches |
| Outside diameter | 4 inches |
| Weight | 40 lb. |
