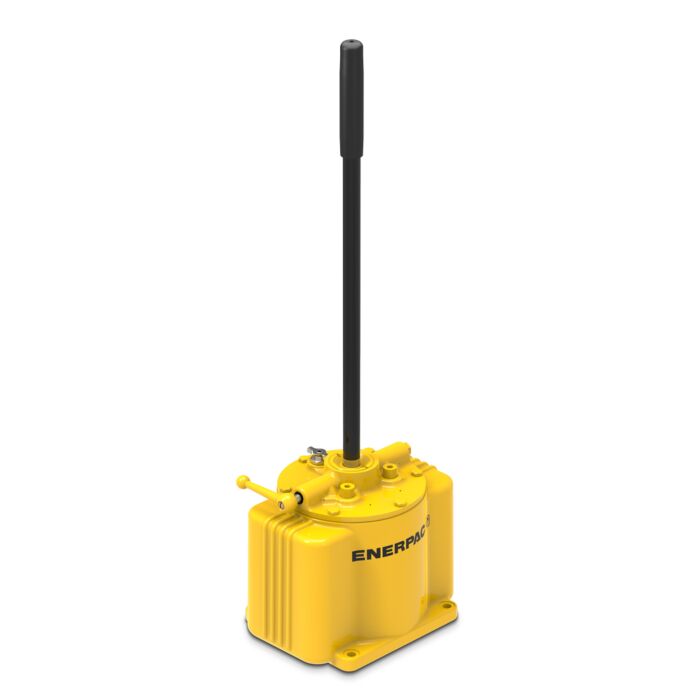

Enerpac P25 Low Pressure Hydraulic Hand Pump, P200 in3 Oil, Single Speed
Low Pressure Hydraulic Hand Pump,P200 in3 Oil, Single Speed

Order #: P25-ENERPAC

Mfg #: P25

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,799.00

Enerpac P25 Low Pressure Hydraulic Hand Pump, P200 in3 Oil, Single Speed

Low Pressure Hydraulic Hand Pump,P200 in3 Oil, Single Speed

Order #: P25-ENERPAC

Mfg #: P25

$1,799.00
Availability: Ships in 3-4 weeks

Product Highlights

Single Speed, Low Pressure Hydraulic Hand Pump, 200 in3 Usable Oil

These Low-Pressure Hydraulic Hand Pumps are durable, portable, highly efficient, and easy to use. Each model in the series features an all-steel construction, a chrome plated plunger, and a wiper system for long-lasting performance.

These pumps are constructed to power a wide range of single acting cylinders and tools in space restricted areas. The range includes the P51 that can be operated in the horizontal orientation only, and others also capable of operating in the vertical orientations: P18 with the pump head facing down, P25, P50 with the pump head facing up. Each is protected by external load-release valves and internal overload pressure-relief valves.

With a choice of oil capacities up to 200 in3 (3,277 cm3), and operating pressures of 2,500 psi (175 bar) - 5,000 psi (350 bar) you will find an Enerpac Low Pressure Hydraulic Hand Pump to suit your needs.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Maximum Operating Pressure (psi) 2,500
Pressure Rating (psi) 1st Stage 2,500
Pressure Rating (psi) 2nd Stage -
Cylinder Compatability Single-acting
Pump Type Single Speed
Reservoir Capacity (in3) 200
Usable Oil Capacity (in3) 200
Maximum Flow at Rated Pressure .58 in3/stroke
Oil Displacement per Stroke (in3) 1st Stage 0.58
Oil Displacement per Stroke (in3) 2nd Stage -
Maximum Handle Effort (lbs) 60
Piston Stroke (in) 1.5
Valve Operation Manual
Power Source Manual
Weight (lbs) 36
