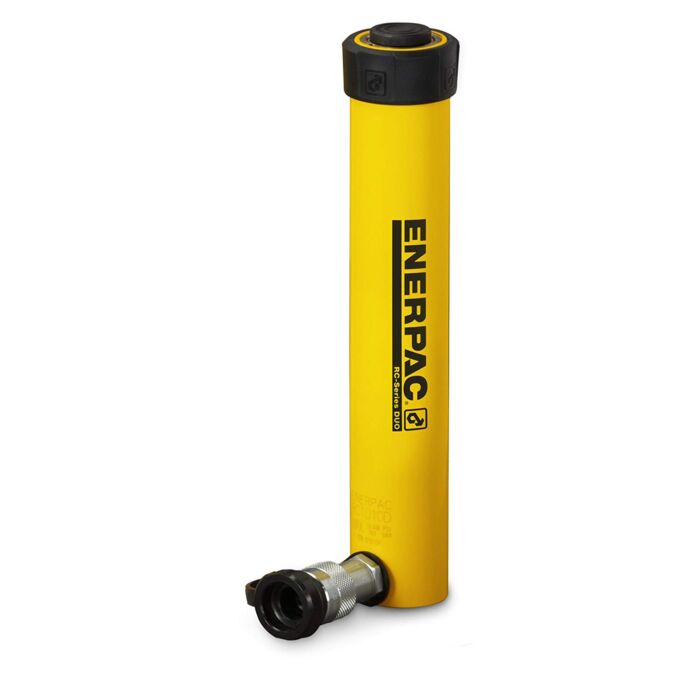

Enerpac RC251 SA Hydraulic Cylinder, 25.8 Ton, 1.0" Stroke, General Purpose
Order #
RC251
|
Mfg #
301287
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
Specifications
| Cylinder capacity | 25 tons (25.8 maximum) |
| Stroke length | 1.00 inch |
| Effective area | 5.16 square inches |
| Oil capacity | 5.16 cubic inches |
| Cylinder bore diameter | 2.56 inches |
| Collapsed height | 5.50 inches |
| Extended height | 6.50 inches |
| Outside diameter | 3.38 inches |
| Weight | 13 lb. |
