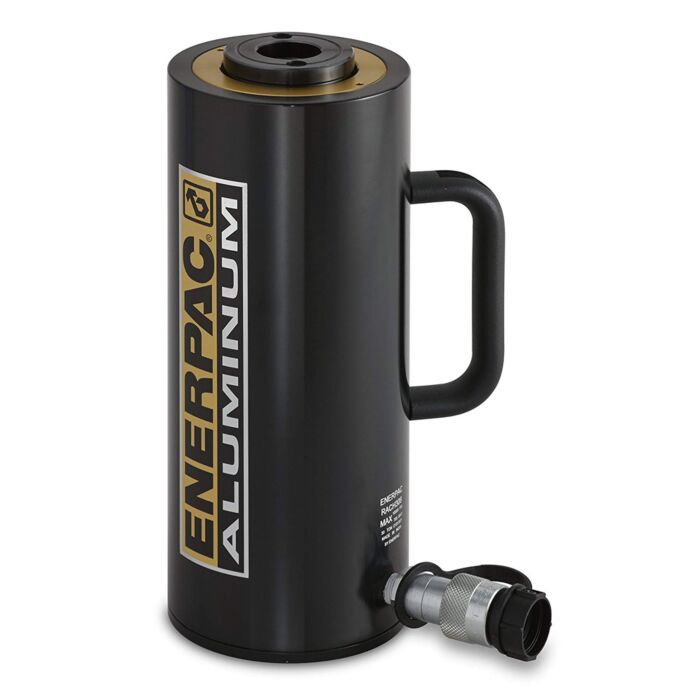

Enerpac RACH306 Enerpac Aluminum Cylinder 30Ton
Enerpac Aluminum Cylinder 30Ton
Order #: RACH-306
Mfg #: RACH306
$5,447.40
Enerpac RACH306 Enerpac Aluminum Cylinder 30Ton
Enerpac Aluminum Cylinder 30Ton
Order #: RACH-306
Mfg #: RACH306
Product Highlights
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR-400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards
Cylinder capacity | 30 tons (39.6 maximum) |
Stroke length | 5.91 inches |
Effective area | 7.92 square inches |
Oil capacity | 46.77 cubic inches |
Plunger diameter | 2.76 inches |
Collapsed height | 13.12 inches |
Extended height | 19.02 inches |
Outside diameter | 5.12 inches |
Weight | 24.6 lb. |
