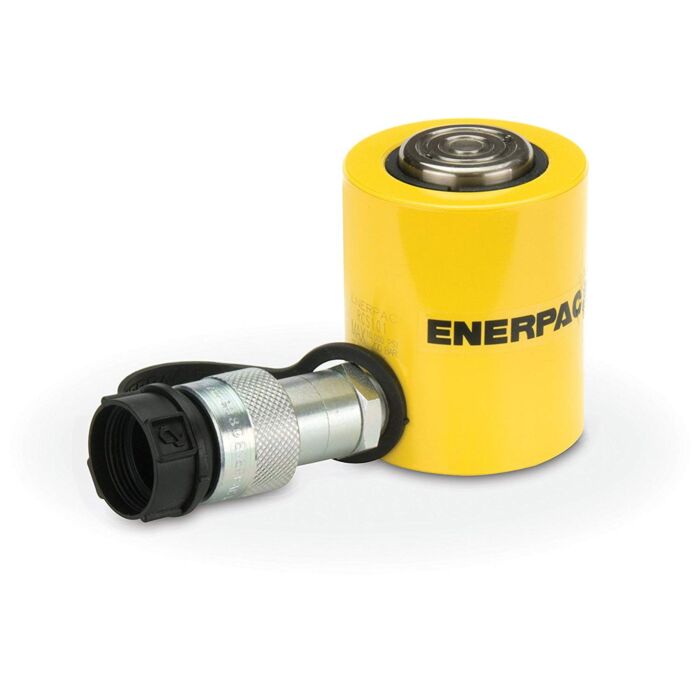

Enerpac RCS101
Low Height Cylinder,10-ton 1.5" Stroke
Order #: RCS-101
Mfg #: RCS101
$999.60
Enerpac RCS101
Low Height Cylinder,10-ton 1.5" Stroke
Order #: RCS-101
Mfg #: RCS101
Product Highlights
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
| Enerpac Model No. | RCS-101 | RCS-201 | RCS-302 | RCS-502 | RCS-1002 |
|---|---|---|---|---|---|
| Cylinder Capacity (Tons) | 10 tons | 20 tons | 30 tons | 50 tons | 100 tons |
| Stroke (in) | 1.5" | 1.75" | 2.44" | 2.38" | 2.25" |
| Cylinder Effective Area (in squared) | 2.24 | 4.43 | 6.49 | 9.62 | 19.63 |
| Collapsed Height (in) | 3.47" | 3.88" | 4.63" | 4.81" | 5.56" |
| Weight (lbs) | 9 lbs | 11 lbs | 15 lbs | 24 lbs | 50 lbs |
