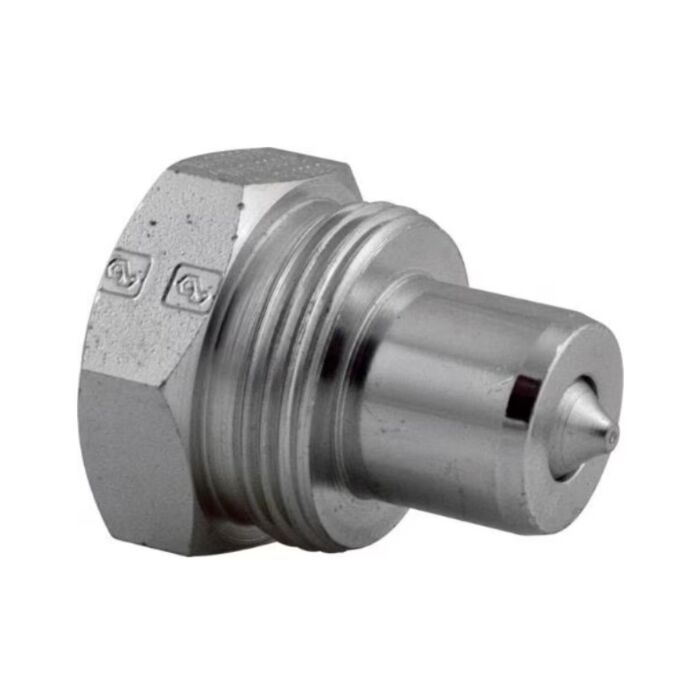

Enerpac CH604 High Flow Hydraulic Coupler, Male Half
High Flow Hydraulic Coupler, Male Half

Order #: CH604

Mfg #: CH604

Questions about availability or need help? Contact Us:

(800) 633-0561
$75.60

Enerpac CH604 High Flow Hydraulic Coupler, Male Half

High Flow Hydraulic Coupler, Male Half

Order #: CH604

Mfg #: CH604

$75.60
Availability:
In stock

Product Highlights

High Flow Hydraulic Coupler, Male Half

The C-Series High Flow Hydraulic Coupler is the standard used on most Enerpac pumps and cylinders up to 10,000 psi (700 bar). These 3/8" high flow couplers provide a quick and secure connections, allowing a flow up to 2100 in3/min (35 liters) per minute.

They can be purchased as a complete set or individually as male and female halves. Included is a "2-in-1" dust cap for use with both on male and female components.

  • 3/8" High Flow Couplers
  • Standard equipment on most Enerpac cylinders
  • Reccomended for use on all Enerpac pumps and cylinders where space and porting permits
  • Include "2-in-1" dust cap for use on male and female coupler halves
  • Dimension A is total length when male and female halves are connected.
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Maximum Operating Pressure (psi) 10,000
Maximum Flow Capacity (in3/min) 2500
Anatomy Male Half
