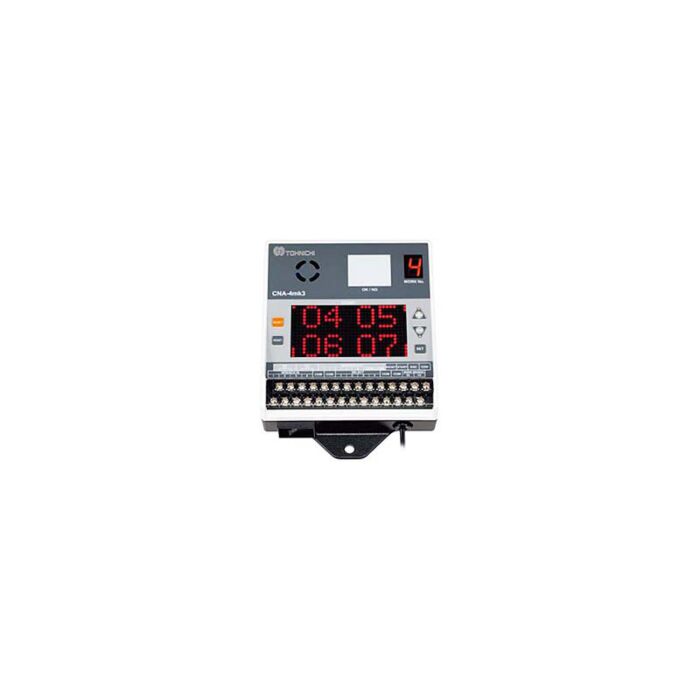

Tohnichi CNA-4MK3
Poka Patrol Count Checker
Order #: CNA-4MK3
Mfg #: CNA-4MK3
Special Price
$435.59
Regular Price
$463.40
Availability: Ships in 3-4 weeks
Product Highlights
- Count checker to prevent missed tightening.
- Can be connected to LS (Limit Switch) torque wrenches for count management.
- Up to four LS torque wrenches can be connected, and each can be set with a different number of bolts to tighten. So up to four operators can perform tightening tasks at the same time.
- From one unit, the numbers of four different types of bolts to be tightened can be set.
- Bolt counting can be set 0-99 pcs for each torque wrench, and count down upon receiving a signal.
- OK/NG judgement signal can be transferred to external device through relay output.
- Connected with LS type torque wrenches (sold separately), CNA4-mk3 establishes error-proofing system.
Count Display | 16x32 dot-matrix LEDs |
OK/NG Judgement Display | 30x25 square display lamp (commonly used for OK/NG) OK?Blue lamp turned on NG: Red lamp blinking?Buzzer sounds(4 patterns |
Work Number Selection Display | 1-digit 7-segment LED |
Count Input | Contact input x 4 |
Maximum Tightening Number of Bolts | 99 counts |
Maximum Number of Works | 8 sets |
OK/NG Judgement Setting | Preset judgement END input judgement Automatic judgement (0 to 300 seconds in steps of 1 second) |
Output Function | OK/NG output (Relay contact output rating: 30 V DC, 1 A, 125 V AC, 0.3A) |
Input Function | SELECT inputx4 START input END input RESET input WORK SENSOR input |
Timer Function Setting | Double count prevention timer (0 to 10 seconds in steps of 0.1 second) Automatic reset timer (0 to 60 seconds in steps of 1 second) Interval warning timer (0 to 99 seconds in steps of 1 second) |
Setting Method | Special-purpose application software (USB communication), key operation |
Working Temperature Range | -10~40 [°C ] |
Electricity Consumption [W] | Below 10 |
Power Supply AC[V] | 100~240V±10% 50/60Hz |
Weight | Approx. 400g |
