Overview
Product Highlights
Temperature range: -80 degrees C to 150 degrees C (-112 degrees F to 302 degrees F)
Maximum temperature: 150 degrees C (302 degrees F)
Accuracy: Typically less than 1 degree C (2 degrees F). This varies with instrument and temperature range.
Time constant: 3 seconds (typical) from air to still water
Dissipation constant: 5.7 mW/degree C in still water
Stainless steel probe dimensions: 1.5 inches long x 0.125 inches in diameter
Length: 36 inch leads
Termination: 3/4 inch dual banana plugs

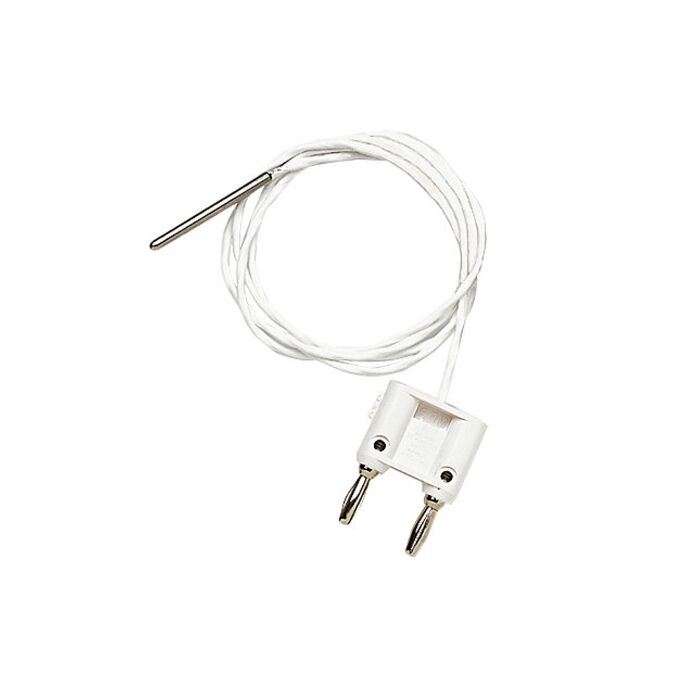

The thermistor (5 k ohm at 25 degrees C) is encapsulated in a stainless steel case and typically used for liquid temperature measurements
The Agilent E2308A is compatible with the Agilent 3458A, 34410A and 34411A multimeter
It can also be used with the 34420A, but doing so requires the probe to be rewired onto the Agilent 34104A Low Thermal Input Connector
The E2308A can also be used with the 34401A, however, it requires an external program to convert the resistance measurements to temperature
