USG3000M series RF signal generators deliver high-quality signals, precise signal levels, and an ultra-wide output power range, meeting the demanding testing needs of wireless communication, aerospace, automotive electronics, industrial manufacturing, semiconductor, and research and education industries.

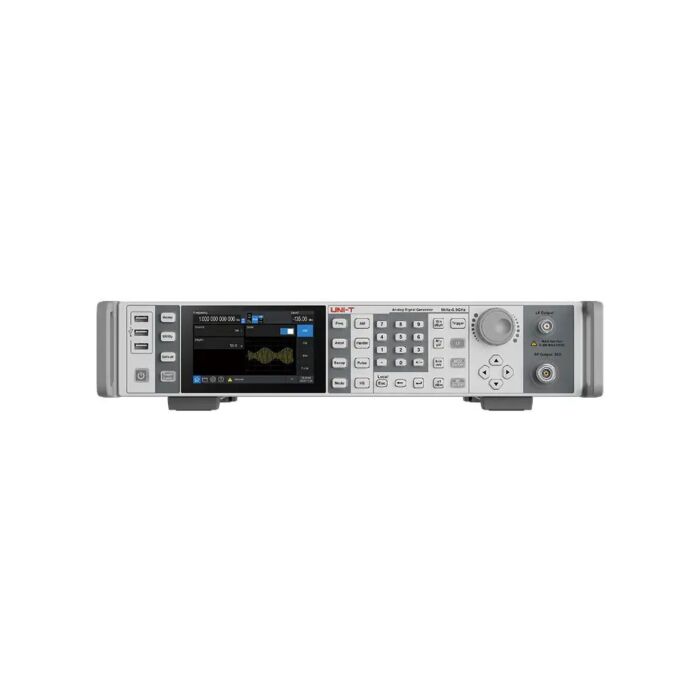

The UNI-T USG3045M RF signal generator delivers exceptional performance with frequencies from 9 kHz to 4.5 GHz, making it ideal for wireless communications, component testing, and research applications. Featuring high signal purity, precise level control, and comprehensive modulation capabilities, this instrument provides the reliability and accuracy that RF professionals demand in today's challenging testing environments.
- Broad Frequency Coverage: Generates signals from 9 kHz to 4.5 GHz with ultra-fine 0.001 Hz resolution for precise testing
- Wide Output Range: Adjustable output levels from -135 dBm to +20 dBm to meet diverse testing requirements
- Superior Signal Quality: Low phase noise (<-122 dBc/Hz @ 1 GHz, 20 kHz offset) ensures accurate measurements
- Versatile Modulation: AM, FM, and ΦM capabilities with internal, external, or combined modulation sources
- Intuitive Operation: 5-inch capacitive touch screen with clear visual feedback and logical menu organization
- Flexible Connectivity: Remote control via LAN and USB interfaces for automated testing environments
- Integrated Function Generator: Built-in 50 MHz function/arbitrary waveform generator adds versatility
- Electronic Attenuator: Provides reliable output level control with 0.01 dB resolution
Applications
- Wireless Communications Testing
- Component/Subsystem Evaluation
- Automotive Electronics
- Production / Manufacturing Test
- Research & Education
Each Unit Includes
- 1 - 9 kHz to 4.5 GHz Analog RF Signal Generator (USG3045M)
- 1 - Power Cord (Country-Specific)
- 1 - USB Data Cable (UT-D14)
- 1 - Quick Start Guide
- 1 - Calibration Certificate
