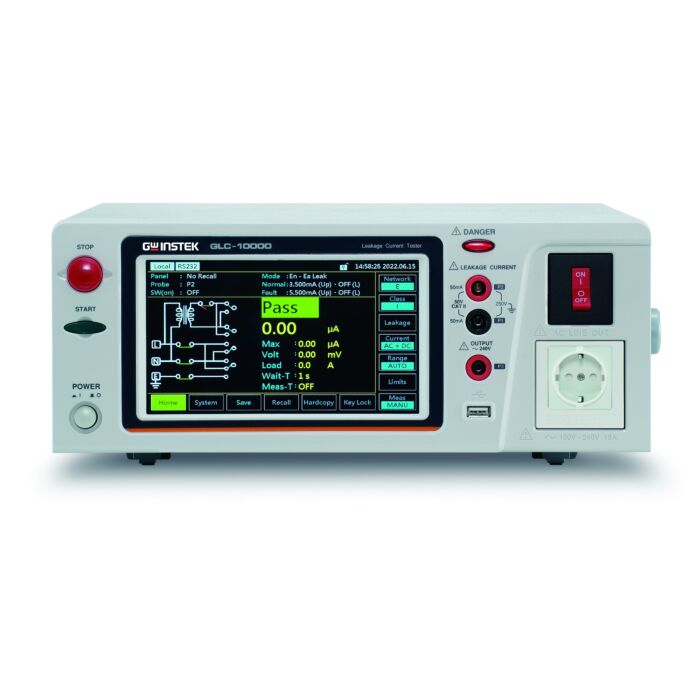

GW Instek GLC-10000 Leakage Current Tester up to 50mA, includes GLC-03/GLC-04

The Instek GLC-10000 Leakage Current Tester features 12 simulated human impedance networks that comply with safety regulations to conduct leakage current (touch current) tests for electric equipment under normal condition or single fault condition. These 12 simulated human impedance networks are in compliance with requirements of safety regulations including IEC, EN, UL, etc.

• Suitable for Medical Electrical & General Electrical of Leakage Current Measurement
• 7" Touch Pane with Color LCD
• 12 Different Measurement Network to Simulate the Resistance of Human Body (Including IEC 60601-1:2020 3.2rd)
• The Measurement of Maximum Allowable Leakage Current is Up to 50mA
• External Terminal for Extension MD Connection
• MD OUT Terminal can be Connected to an Oscilloscope for Convenient Comparison of Measured Waveforms
• 30 Sets Memories for Test Parameter; 1000 Sets Memories for Measured Data
• Test Parameter Export/Import Function Through USB Host
• USB Storage for Measurement Data/Screen Capture
• Various Standard Interfaces: RS-232C, USB Host & Device, LAN, Signal I/O and GPIB (Optional)
