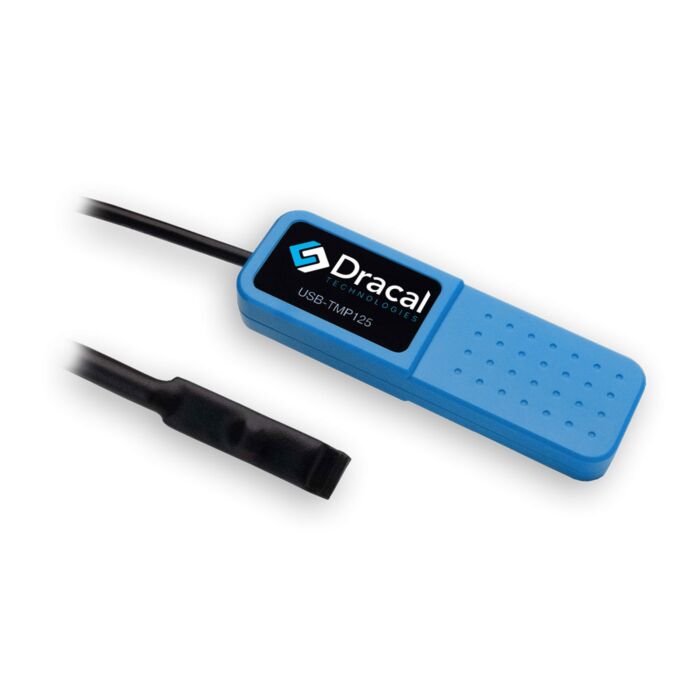

Dracal VCP-TMP125-CAL

USB Precision temp sensor calibratable w/VCP

Order #: VCP-TMP125-CAL

Mfg #: 605000

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$216.99

Availability: Ships in 3-4 weeks

Ships Free Over $100

This product is available for shipping to the United States and Canada only.

Product Overview

Product Highlights

TMP125: Precision USB ambient temperature sensor with a probe that can operate and read temperatures levels as low as -55°C.

The TMP125 is a low-cost USB ambient temperature sensor based on a precision temperature chip. It can measure temperatures as low as –55°C with an excellent precision and outstanding resolution of 0.06°C. Its sensing probe has a dust, moisture and splash-proof coating. This high level of protection makes it possible to use this unit even in harsh environments.

Temperature

Operating range: -55 to +75°C
Accuracy:
- ±1.0°C (max.) from -10 to +75°C
- ±2.0°C (max.) from -55 to +75°C
Resolution: 0.5°C

Channel Id	Description	Type	Nature
00	MCP980x I2C Temperature sensor	Temperature	Real

Miscellaneous

Housing temperature range: 0 to +75°C
Powered by USB
Operating current: 12 mA
Weight: 76 g
Housing: ABS Plastic
Housing IP rating: N/A
Cable length: 4 feet on the sensor side, 3 feet on the USB side
The probe and the cable on the sensor side are splash proof, but the Housing and USB cable are NOT. Use adequate protection.

Virtual COM port communication protocol (option)

This product is available with the option of communication via virtual COM port protocol. Products with this option can be freely converted between USB and VCP communication modes.
