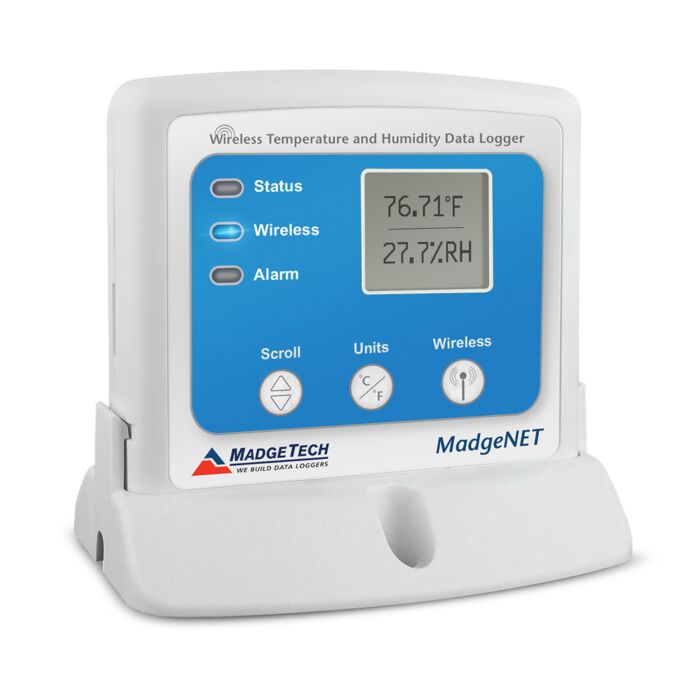

MadgeTech RFRHTEMP2000A Wireless Temperature/Humidity Data Logger with LCD

MadgeTech RFRHTEMP2000A

Order # RFRHTEMP2000A

Mfg # RFRHTEMP2000A

call-regular 800-828-1470
$499.07
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

MadgeTech RFRHTEMP2000A

Order # RFRHTEMP2000A | Mfg # RFRHTEMP2000A
$499.07
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Wireless Temperature/Humidity Data Logger with LCD

The RFRHTemp2000A is a wireless temperature and humidity data logger. Includes ISO17025 accredited calibration certificate.

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Notifications

The RFRHTemp2000A is a wireless temperature and humidity data logger. Designed with external humidity and RTD-based temperature sensors, the RFRHTemp2000A provides a fast response time for both parameters.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFRHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFRHTemp2000A s compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFRHTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Technical Resources

Specifications

Memory 16,128 readings (all channels enabled)
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
LED Indicators Green, Blue & Red
Battery Life 3 years typical at a 1 minute reading rate
Material ABS plastic
Dimensions 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating IP22
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing
Required Interface Package RFC1000
Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Internal Channel Temperature Sensor Resistance Temperature Detector (RTD)
Internal Channel Temperature Range -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C (0 °C to 55 °C)
Humidity Sensor Relative Humidity Sensor
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.1 %RH
Humidity Calibrated Accuracy ±3.0 %RH
Specified Accuracy Range 25 %RH to 75 %RH; +20 °C to +40 °C
Hysteresis Error 1 % typical, 3 % Maximum
RF Carrier Frequency 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
RF Baud Rate 250,000
Output Power +0 dBm typical
Receiver Sensitivity -95 dBm typical
Typical outdoors Line of sight Up to 2,000 ft
Typical Indoors line of sight Up to 500 ft
