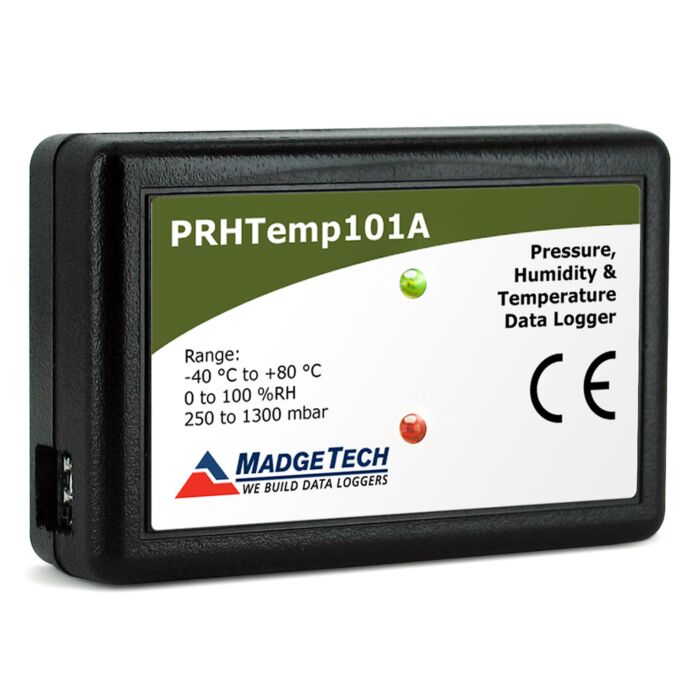

MadgeTech PRHTEMP101A Data Logger

Overview

Product Highlights

Pressure, Humidity and Temperature Data Logger with a 10 year battery life

The PRHTemp101A is a compact, pressure, humidity and temperature data logger. Includes standard calibration certificate.

Compact Size
Configurable Alarms
Memory Capacity of 698,000+ Readings

The PRHTemp101A is a pressure, humidity and temperature data logger. Its compact design and 10-year battery life make it ideal for long-term deployment.

The PRHTemp101A has multiple start/stop functions and can even be programmed to start recording 18 months in advance. It also features user-specified high/low alarm limits (pressure channel only) and the ability to store up to 698,368 readings.

The PRHTemp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Madgetech PRHTEMP101A Datasheet
Madgetech PRHTEMP101A Product User Guide

Specifications

Memory	698,368 readings
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	115,200
LED Indicators	Red & Green
Battery Life	10 years typical (at a 15 minute reading rate)
Material	Polycarbonate
Dimensions	1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment	-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA
Required Interface Package	IFC200
Approvals	CE

Internal Channel Temperature Sensor	Resistance Temperature Detector (RTD)
Internal Channel Temperature Range	-40 °C to +80 °C (-40 °F to +176 °F)
Internal Channel Temperature Resolution	0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy	±0.5 °C (±0.9 °F) (+5 °C to +55 °C / +41 °F to +131 °F)

Humidity Sensor	Capactive Polymer
Humidity Range	0 %RH to 95 %RH
Humidity Resolution	0.1 %RH
Humidity Calibrated Accuracy	3.0 %RH (+5 °C to +55 °C / +41 °F to +131 °F)

Pressure Sensor	Piezoresistive
Pressure Range	250 mbar to 1300 mbar
Pressure Resolution	0.02 mbar
Pressure Calibrated Accuracy	10 mbar (+5 °C to +55 °C / +41 °F to +131 °F)
